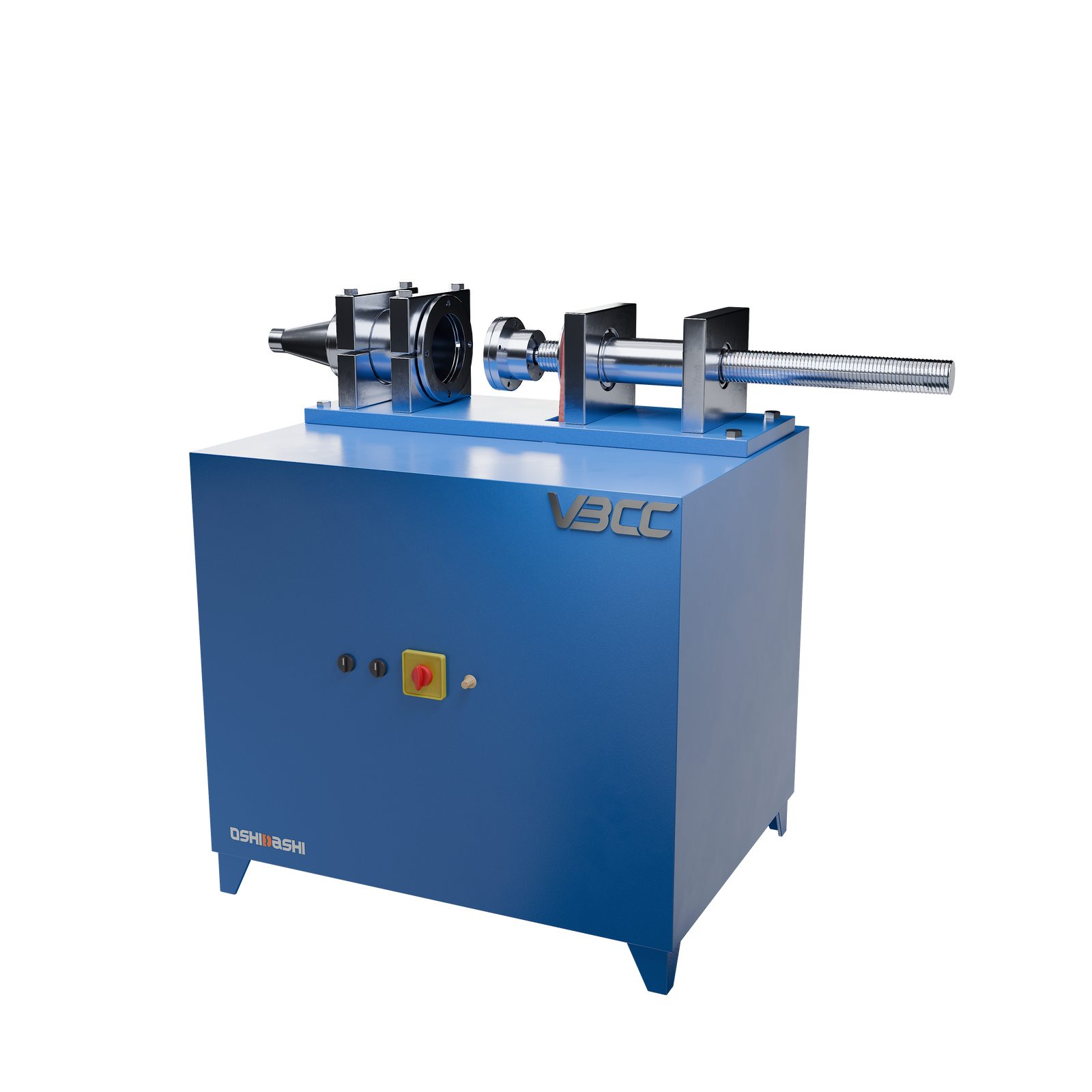

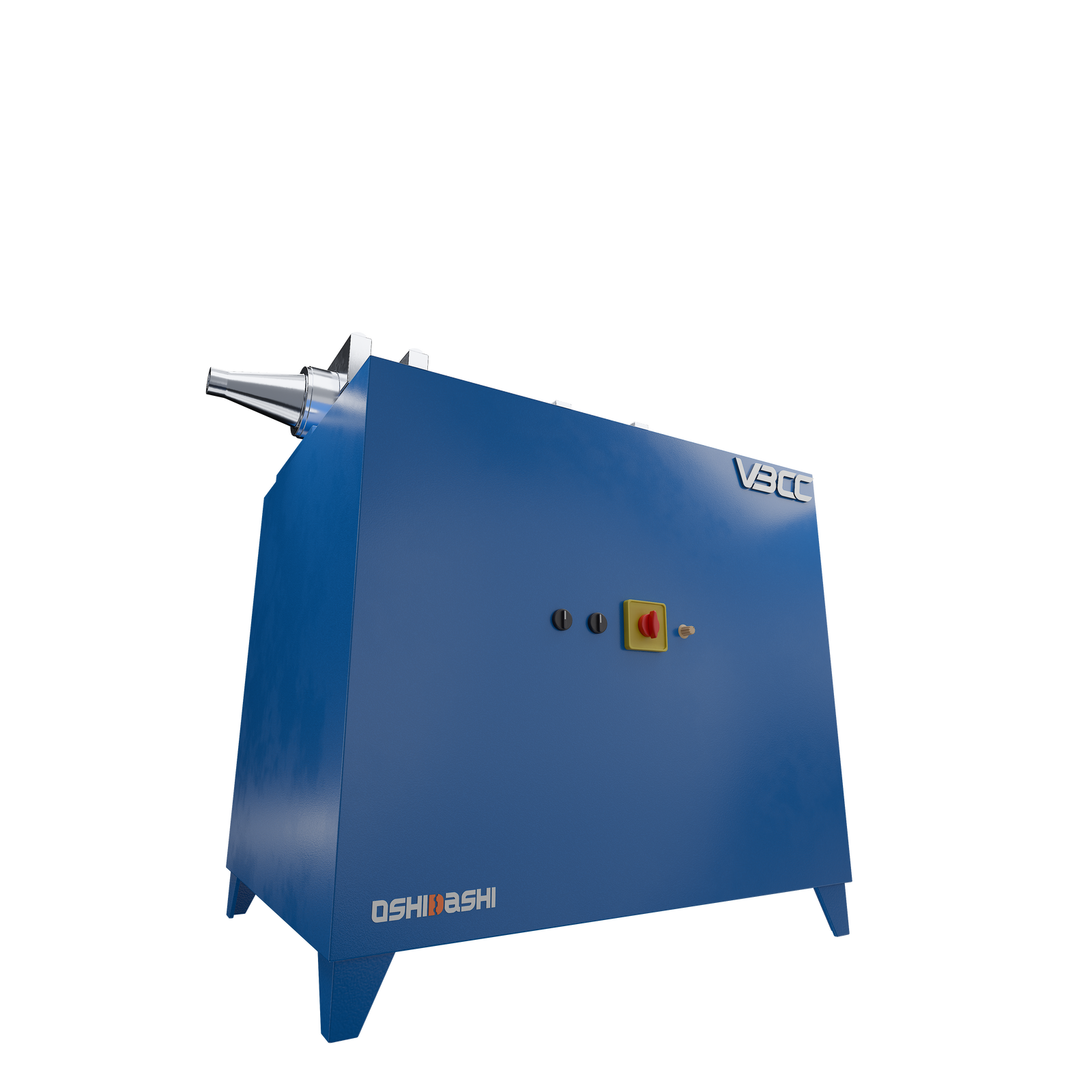

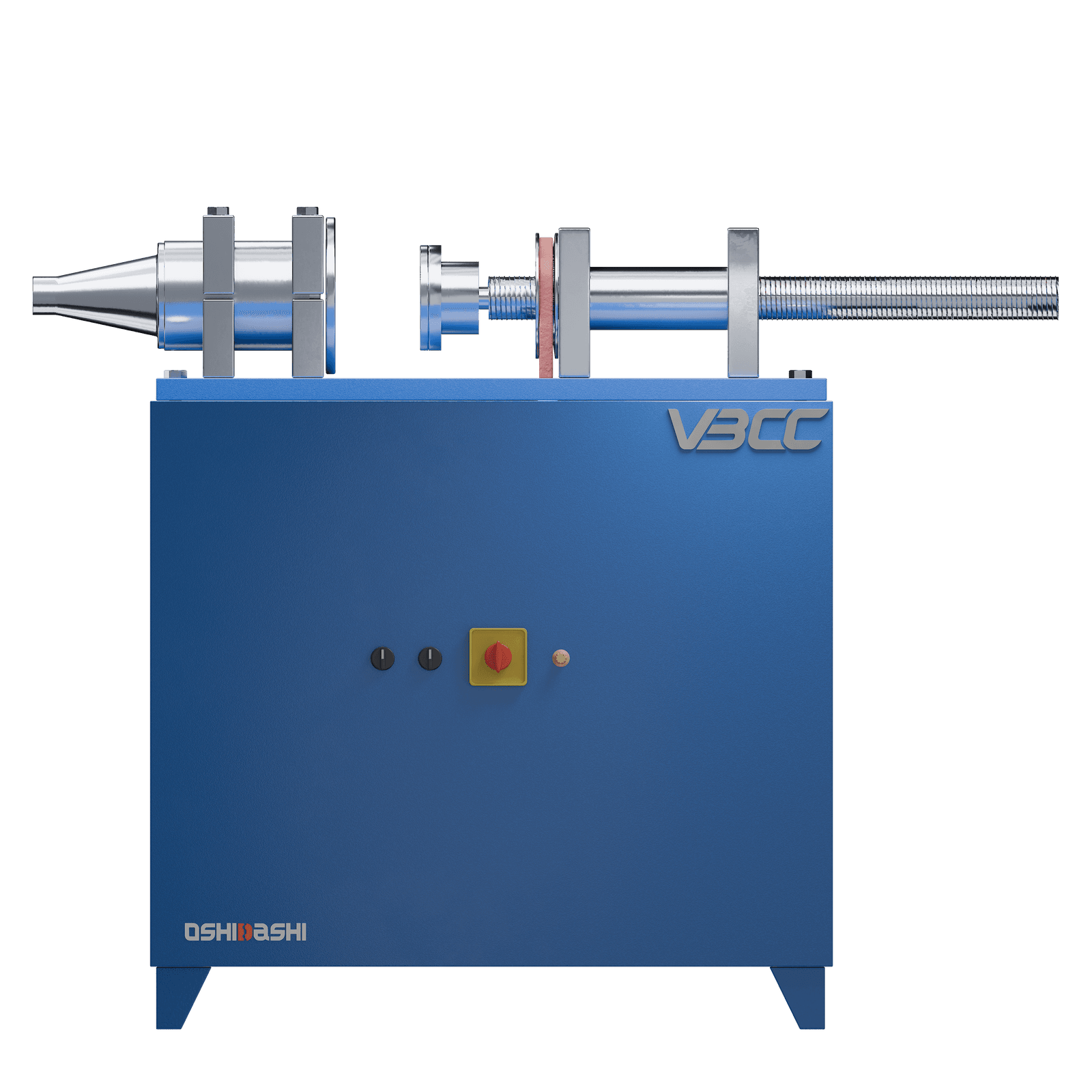

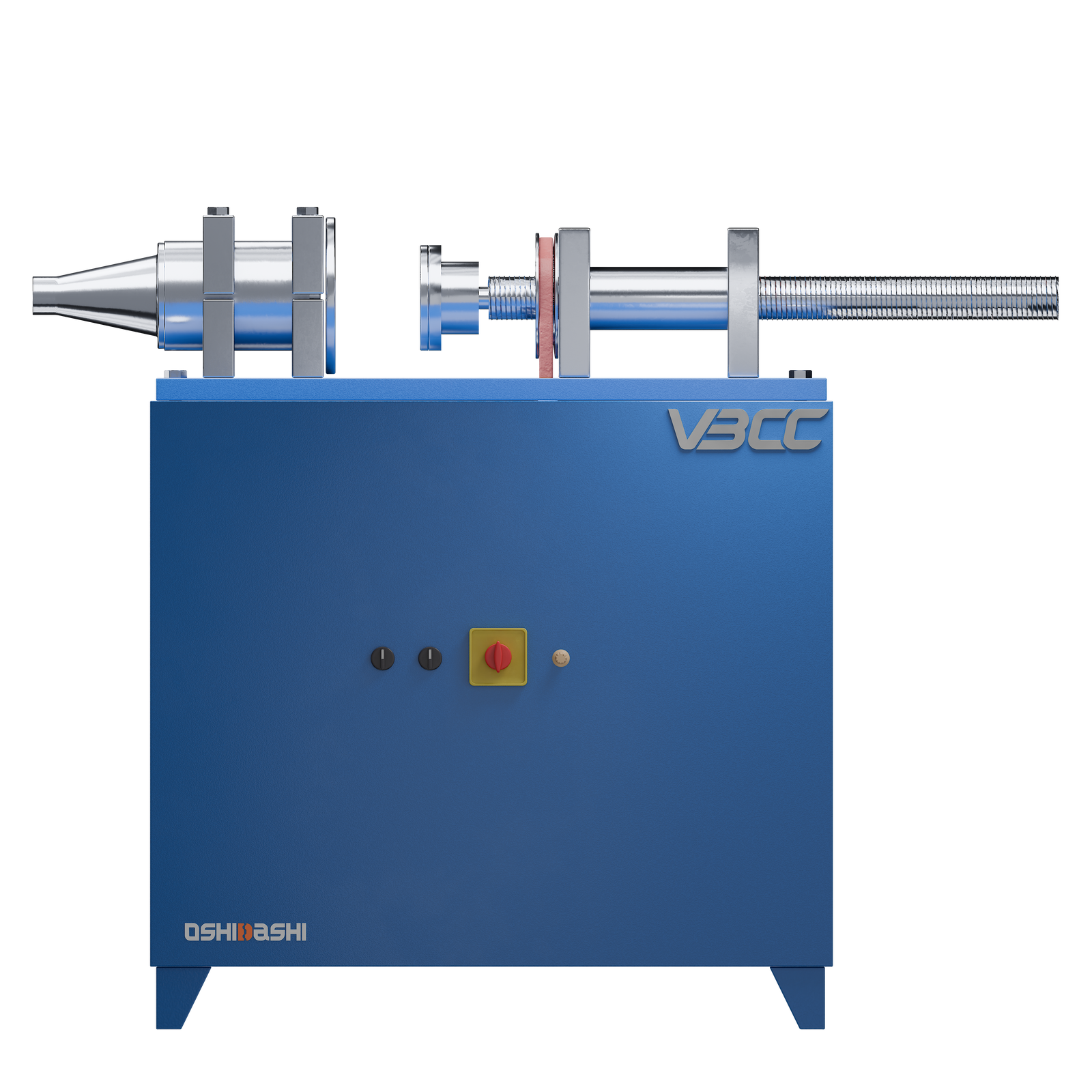

Automatic Extruder
Unlike manual extruders, automatic extruders are motorized, minimizing the need for manual effort. They utilize a rotating screw within a heated barrel to melt and shape plastic into various forms. This advanced design ensures precise control over key processing parameters, offering enhanced efficiency and consistency.
- Versatile Material Handling :Designed to process a wide range of materials such as meta materials, ceramic materials, and metal powders with adequate plasticity to pass through the die.
- Piston Type Extruder :The piston-driven design ensures smooth and efficient material extrusion.
- Fixed Machine Frame :Mounted in a robust mild steel (MS) frame, ensuring stability during operation.
- Precise Extrusion Height :The extrusion height is set to 200mm from the base level for optimal material flow.
- Single Screw Piston Movement :The machine uses a single screw model that is connected to the piston for efficient material movement through the die orifice.
- Mechanized Drive :Powered by a 0.5HP motor, ensuring efficient performance.
- Variable Speed Control :The extruder features a variable speed drive (VFD) for precise control over extrusion speed.
- Polished Stainless Steel Barrel :The barrel is made from high-quality, well-polished stainless steel for durability and smooth operation.
- Customizable Die Size :A single die, customized to the customer’s requirements, is supplied with the extruder. Standard die dimensions include an inner diameter of 5.5 mm and an outer diameter of 11.5 mm.
- Available Options - Single Screw Model :Ideal for simpler extrusion processes, offering good control over material flow.
- Available Options - Twin Screw Model :Provides enhanced mixing and better handling of more complex materials for superior quality and consistency.
- Available Options - Piston Type Model :Suitable for applications requiring precise material pushing and high pressure for more demanding material types.
