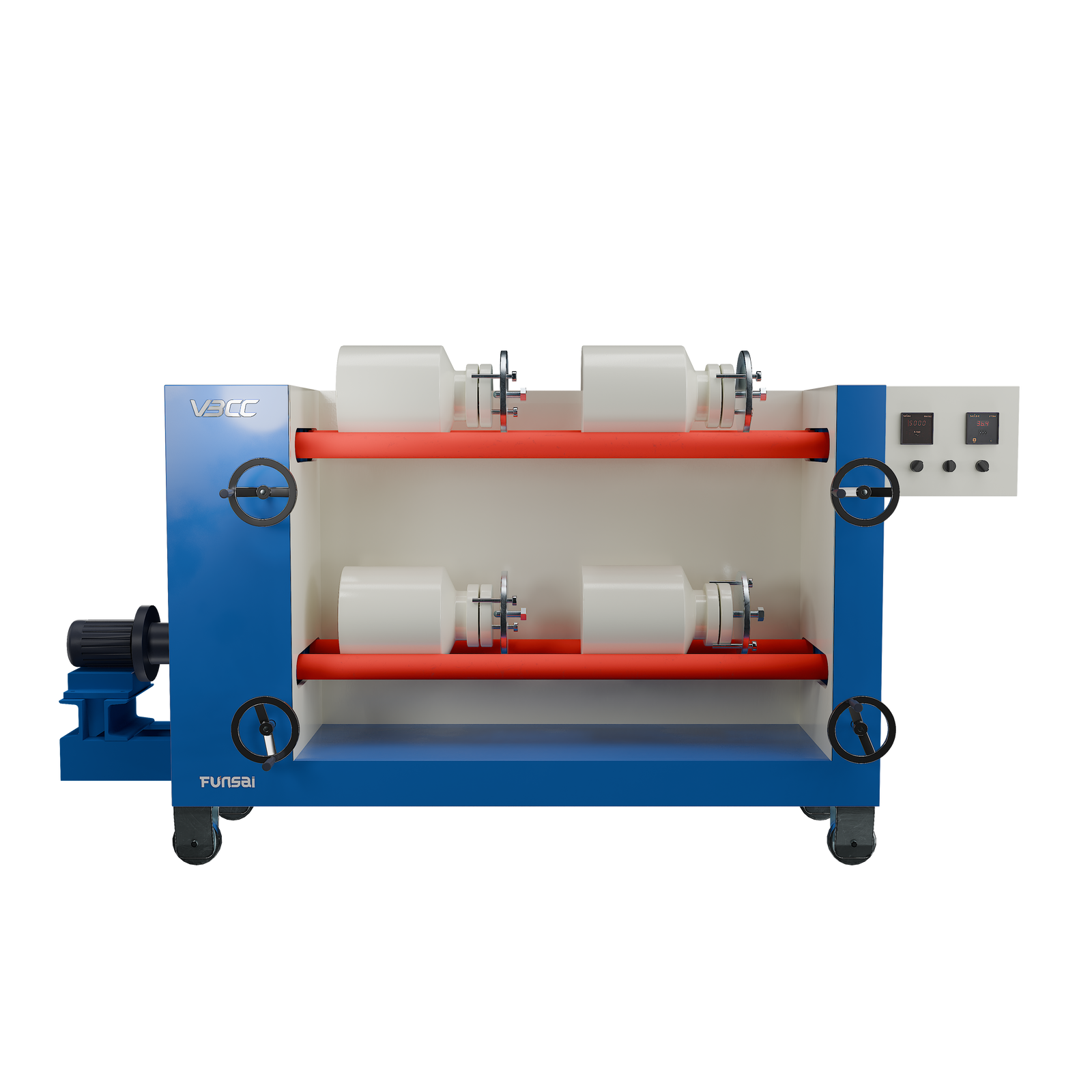

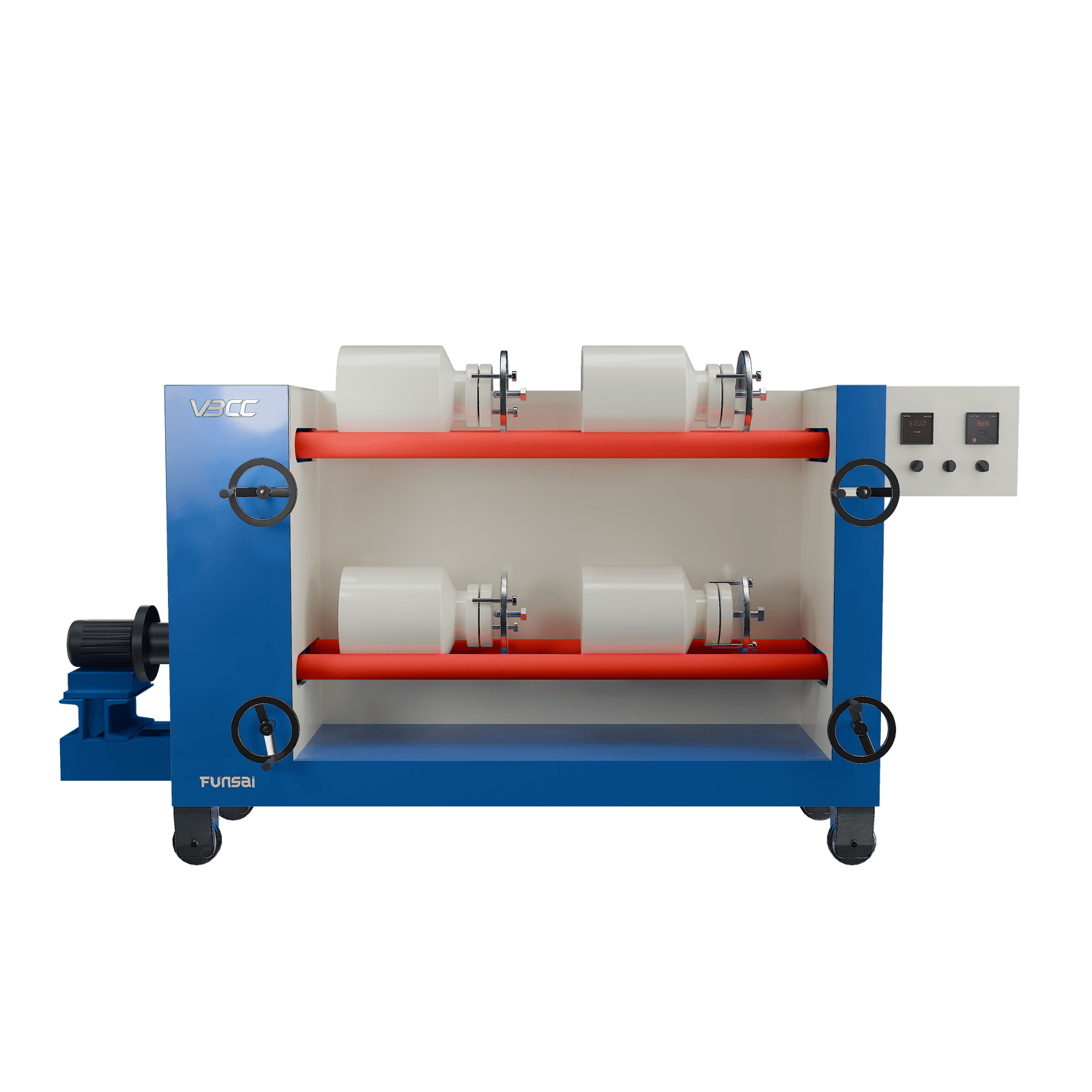

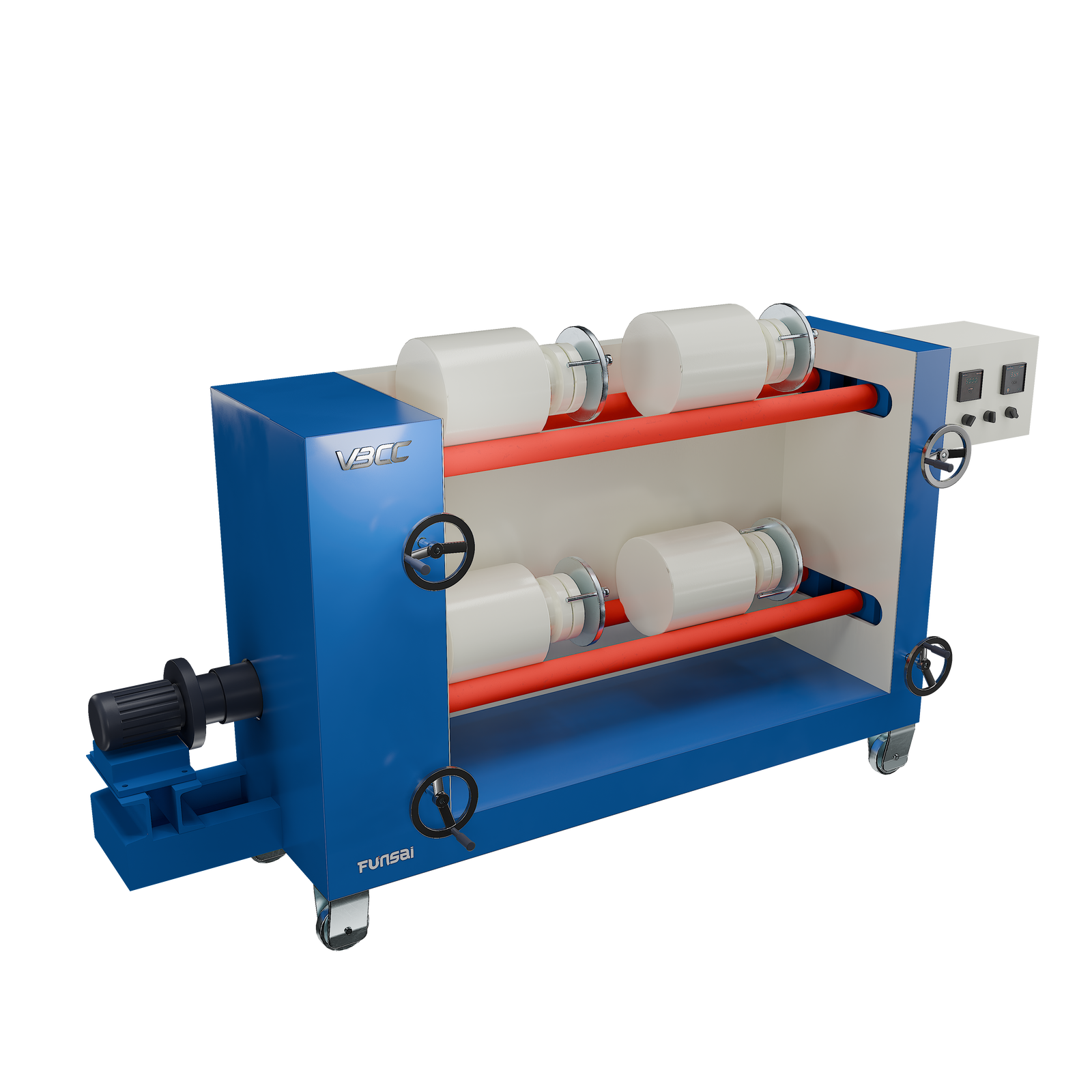

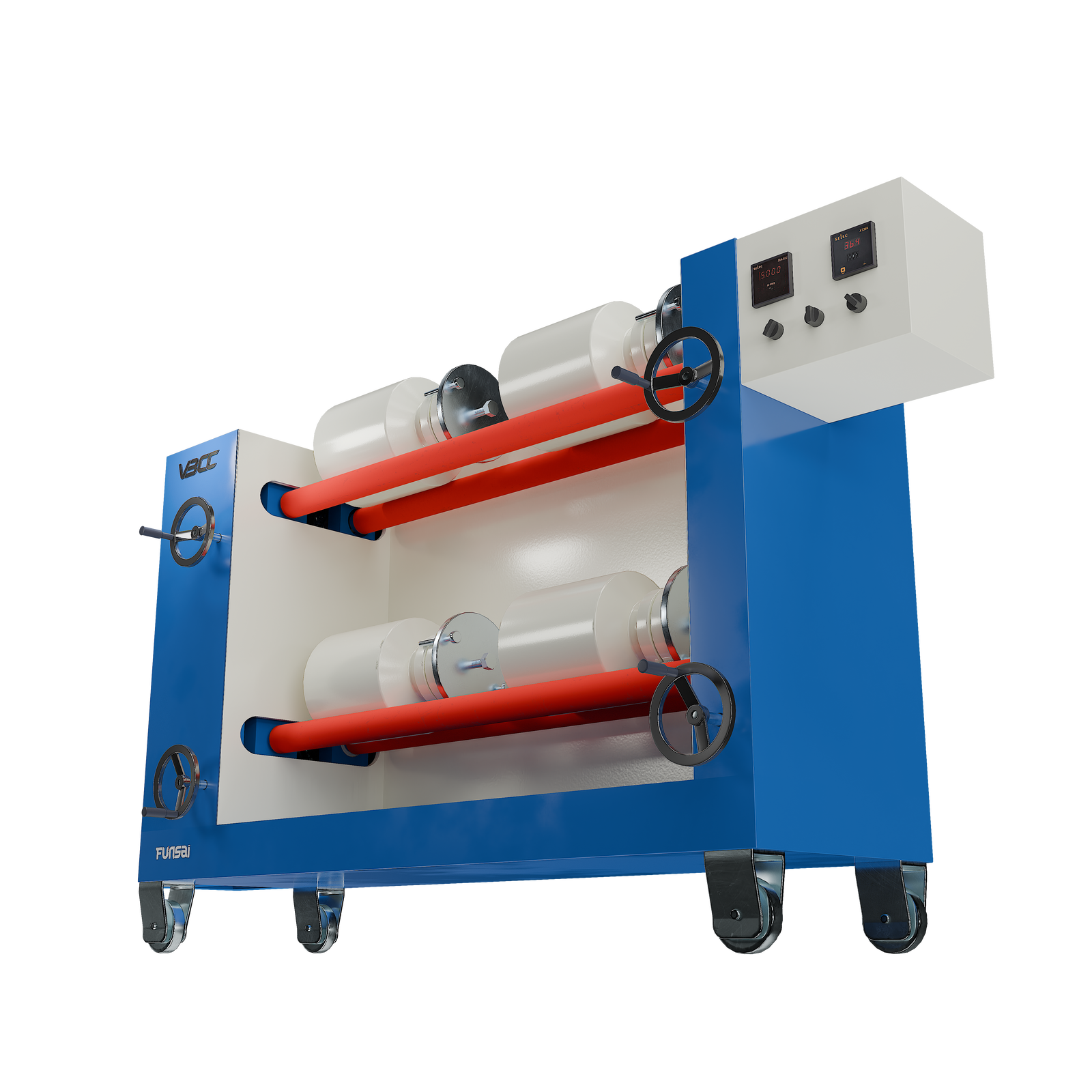

Multi Deck Roller Jar Mill

VBCC's Multi-Deck Roller Jar Mill is a state-of-the-art solution for effective mixing and grinding of solid filler powders, ensuring uniform ceramic precursor slurries. Designed for versatility, this equipment supports both wet and dry grinding, making it suitable for diverse applications in ceramics, chemical processing, and materials science.

  • Reliable Construction : Made from M.S. body with a powder-coated finish for durability and long-lasting use.

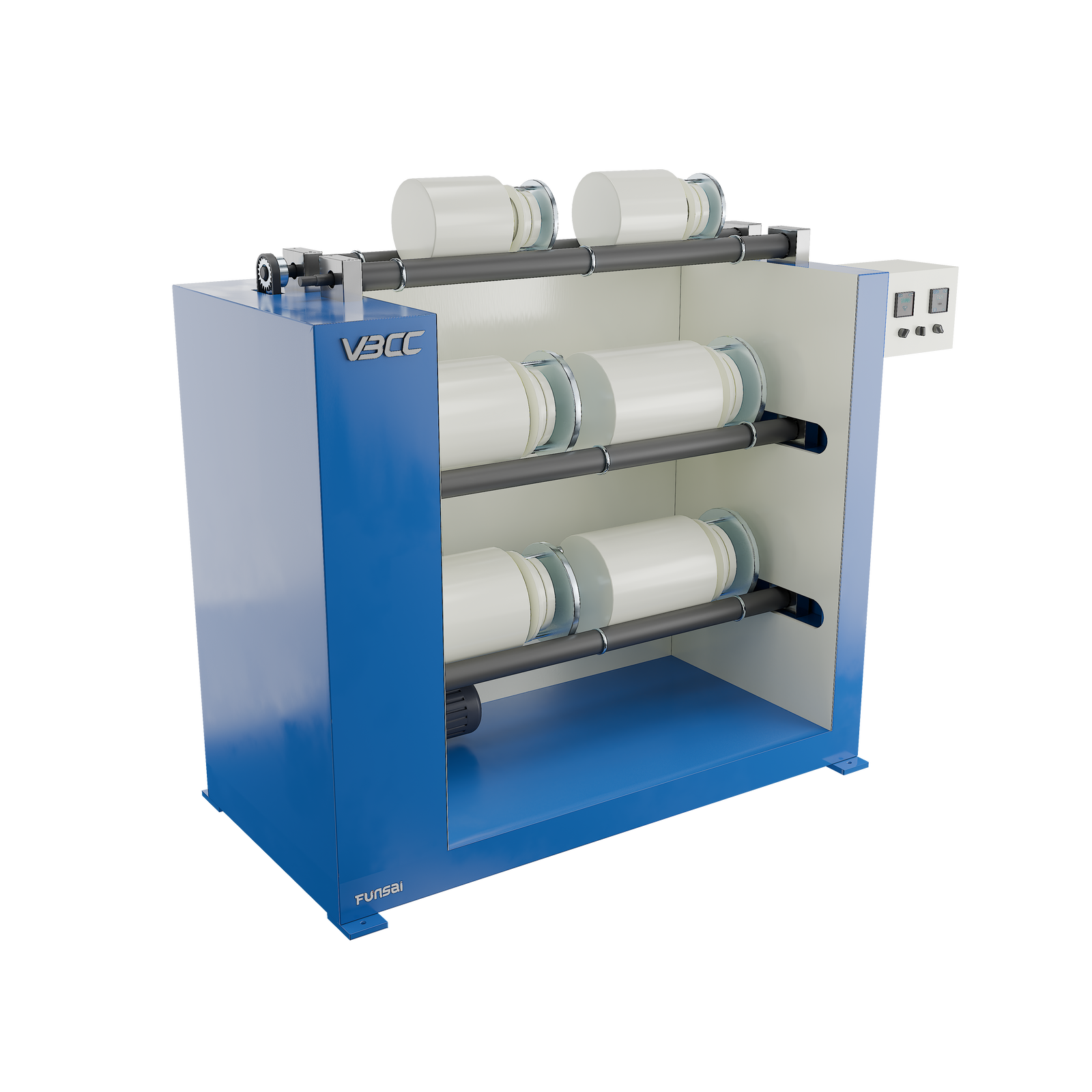

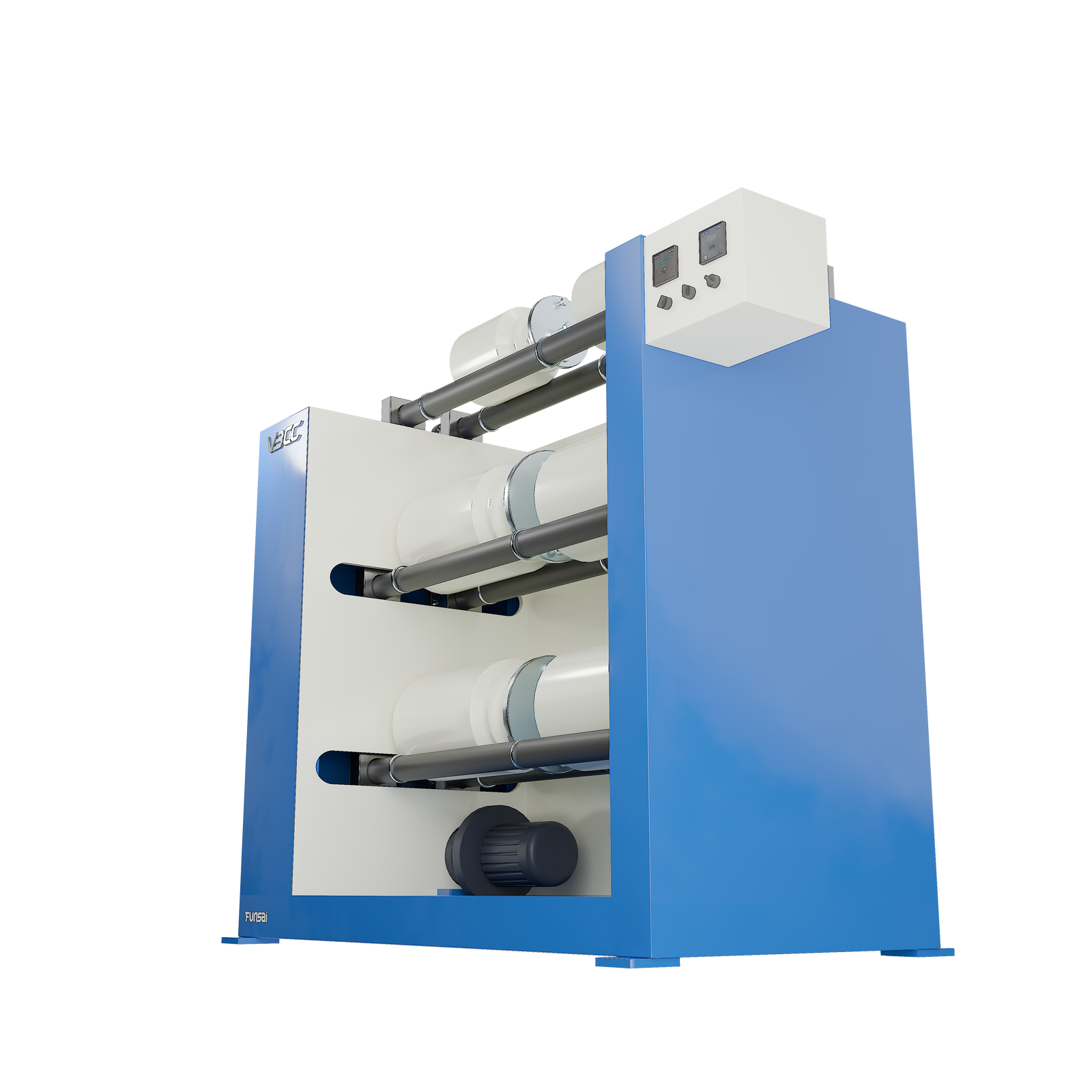

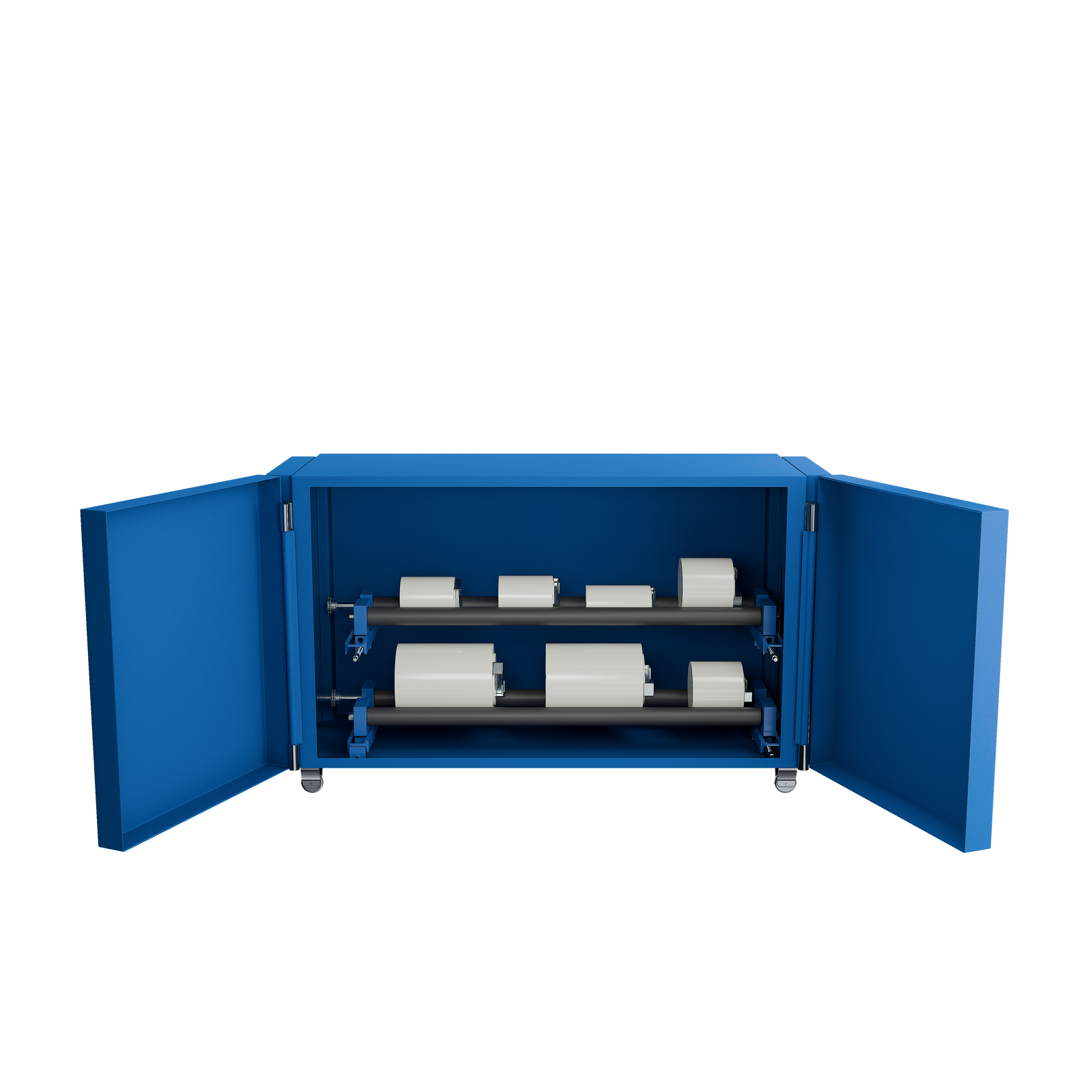

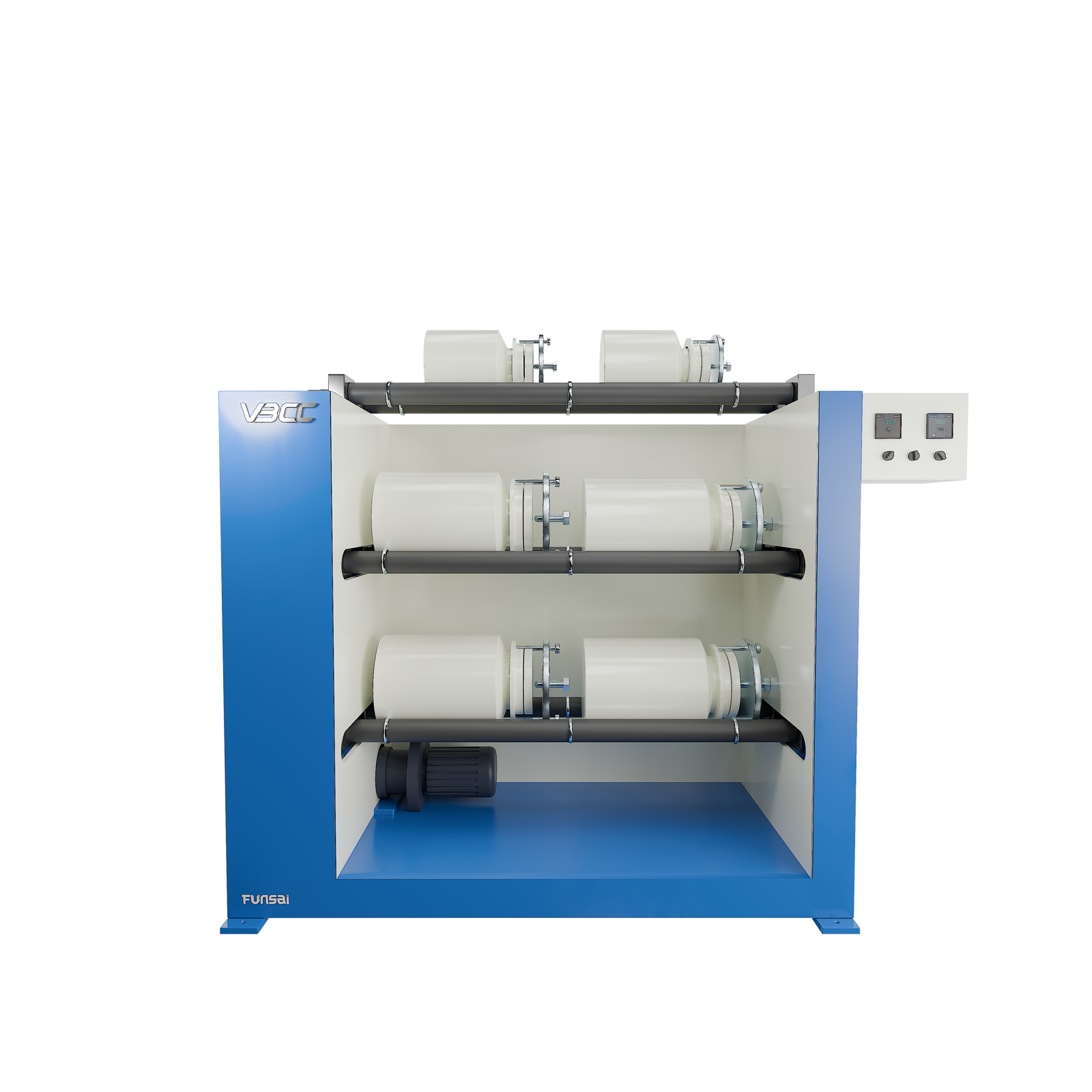

  • Multi-Tier Arrangement : Supports simultaneous operation of multiple jars to maximize efficiency.
  • Adjustable Rollers : Accommodates jar sizes ranging from 2” to 10” in diameter. Made with high-quality neoprene or polyurethane coating for superior resistance to wear and chemicals.
  • Continuous Operation :Designed for 200 hours of unmanned, continuous operation with smooth, reliable performance.
  • No Cross Contamination :Designed to ensure no contamination between sample batches.
  • Powerful Drive System :Features a sealed ball-bearing roller chain drive, allowing speeds from 30 to 300 rpm with variable frequency drive (VFD)
  • Optional Customization - Tiers :Choose from Single, Two, or Three-tier configurations to suit your production needs.

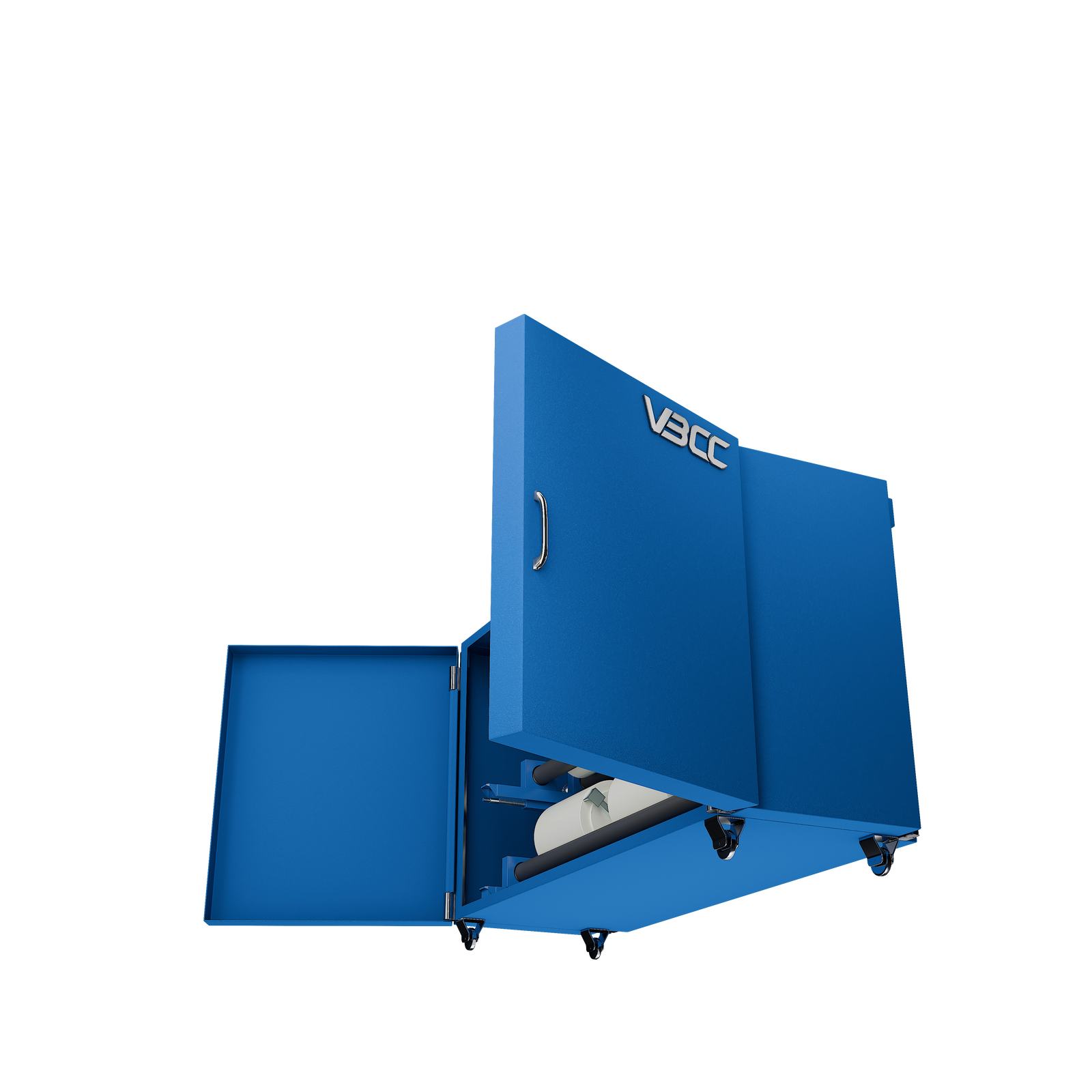

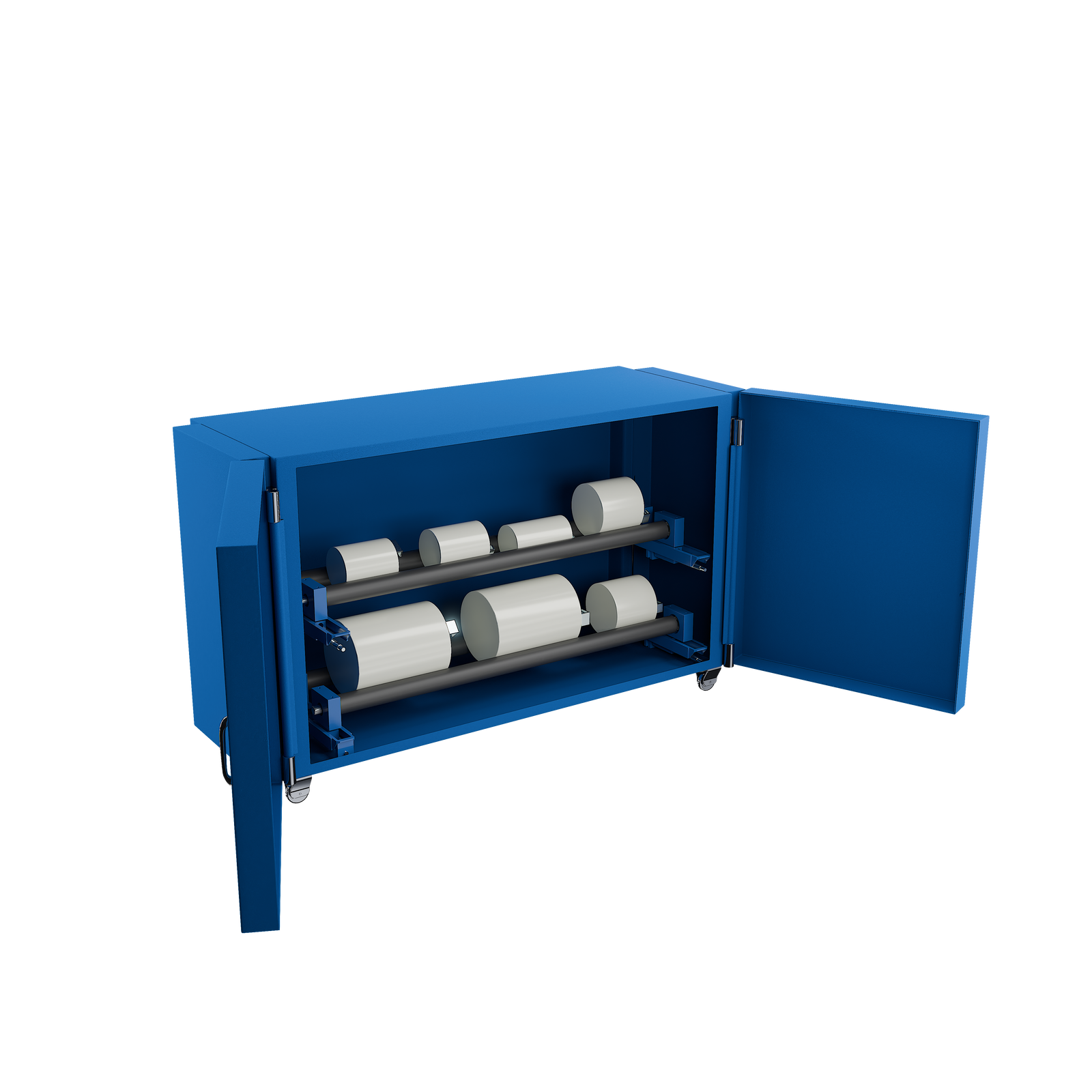

  • Optional Customization - Soundproofing :Available option to reduce noise levels during operation for a quieter workspace.
  • Optional Customization - Roller Coating :Select from Neoprene or Polyurethane coatings for the rollers, ensuring durability and chemical resistance.
  • Optional Customization - Jar Options : Available jars include Alumina, Stainless Steel (SS), Zirconia, Tungsten Carbide, Plastic, and Porcelain in sizes from 100ml to 100L.
  • Optional Customization - Grinding Balls :Choose from Stainless Steel (SS), Zirconia, Polymer, Tungsten Carbide, or Alumina grinding media for optimal performance.
