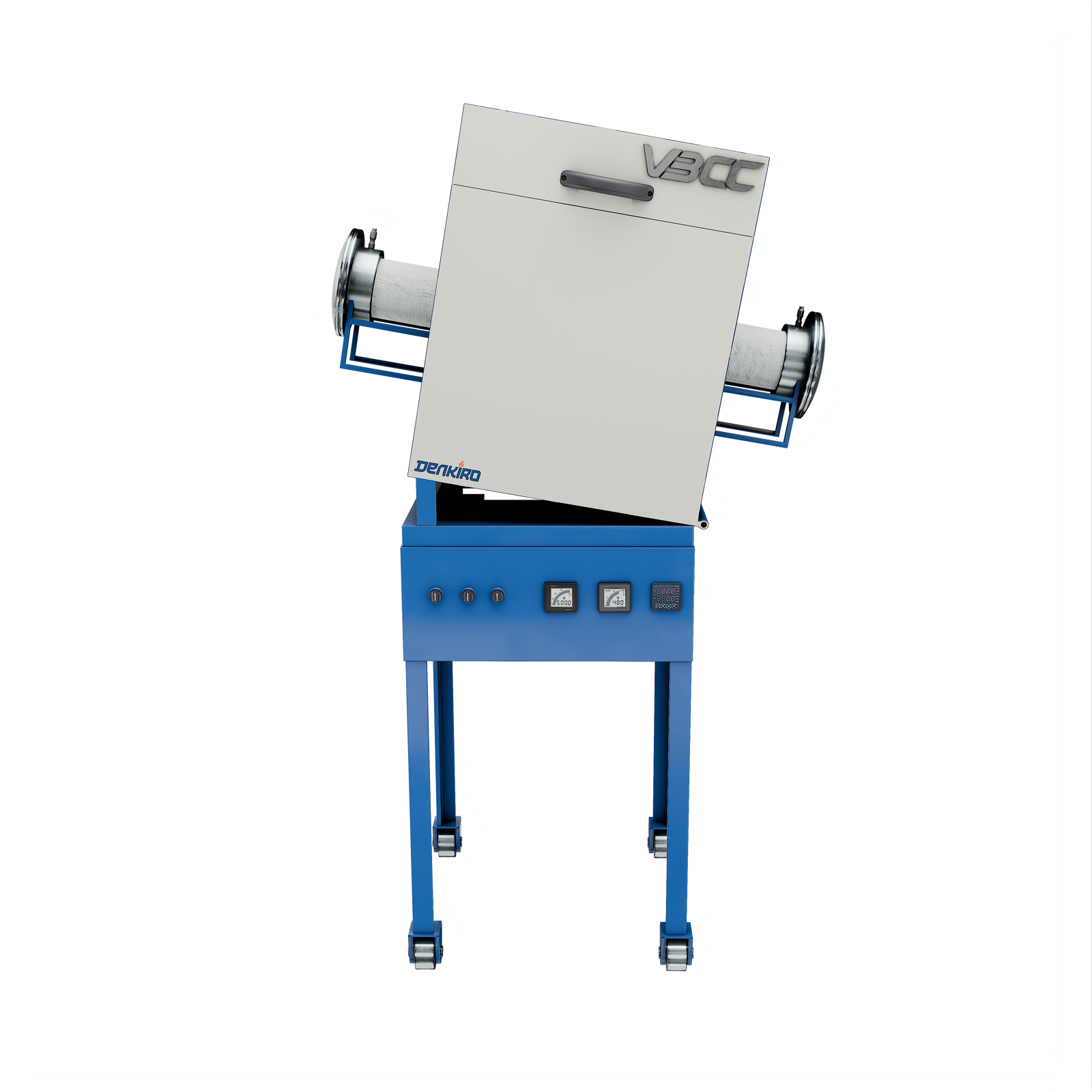

Tiltable Tubular Furnace (Variant Under Tubular Furnace)
Unlike our conventional tubular furnaces, this advanced design with a tiltable mechanism offers superior heat distribution and seamless material handling. The tiltable tubular furnace can accommodate granules, powders, and other particulate materials, making it a versatile tool for numerous laboratory heat treatment processes such as sintering, calcination, and carbon activation.
- Versatile Tilting Capability :Designed with a tiltable mechanism, allowing precise control over the inclination angle of the furnace chamber, enhancing flexibility in sample processing.
- Compact and Space-Saving Design :Utilizes a tiltable structure optimizing space utilization in the laboratory or industrial setting.
- Tailored Useful Volume :Offers a useful volume of 60 mm (ID) x 200 mm (L), providing ample space for accommodating various sample sizes and configurations.
- Durable Construction :Crafted with MS body and angle structures, reinforced with stiffeners, ensuring robustness and stability during tilting operations.
- Precise Gas Control System :Equipped with two rotameters for precise gas purging, facilitating control over the atmosphere within the tiltable furnace chamber.
- High-Temperature Tubular Material :Utilizes recrystallized alumina tubing with zero porosity, capable of withstanding temperatures up to 1800°C, ensuring durability and reliability.
- Advanced End Flanges :Features stainless steel or aluminum fittings with water cooling arrangement and O-ring seals, suitable for vacuum and multi-gas purging applications, even in tilted positions.
- Reliable Heating System :Employs APM Kanthal heating elements, providing reliable heating performance up to 1200°C for continuous operation, even when tilted. Designed to accommodate different heating element materials such as silicon carbide for 1400°C and super Kanthal from 1600°C.
- Advanced Temperature Control :Incorporates a TAIE PID-18*8=144 Segments programmer and K-type thermocouple for precise temperature control with an accuracy of ±1°C, ensuring consistent results during tilting.
- Flexible Power Regulation :Utilizes phase angle-controlled thyristers for efficient power regulation, maintaining temperature stability and control, even during tilting.
- User-Friendly Interface :Equipped with intuitive control switches for mains and output, facilitating easy operation and adjustment of furnace settings, even when tilted.
- Enhanced Safety Features :Includes input and output fuses for enhanced safety during operation, ensuring protection for both the equipment and the user, even during tilting maneuvers.
