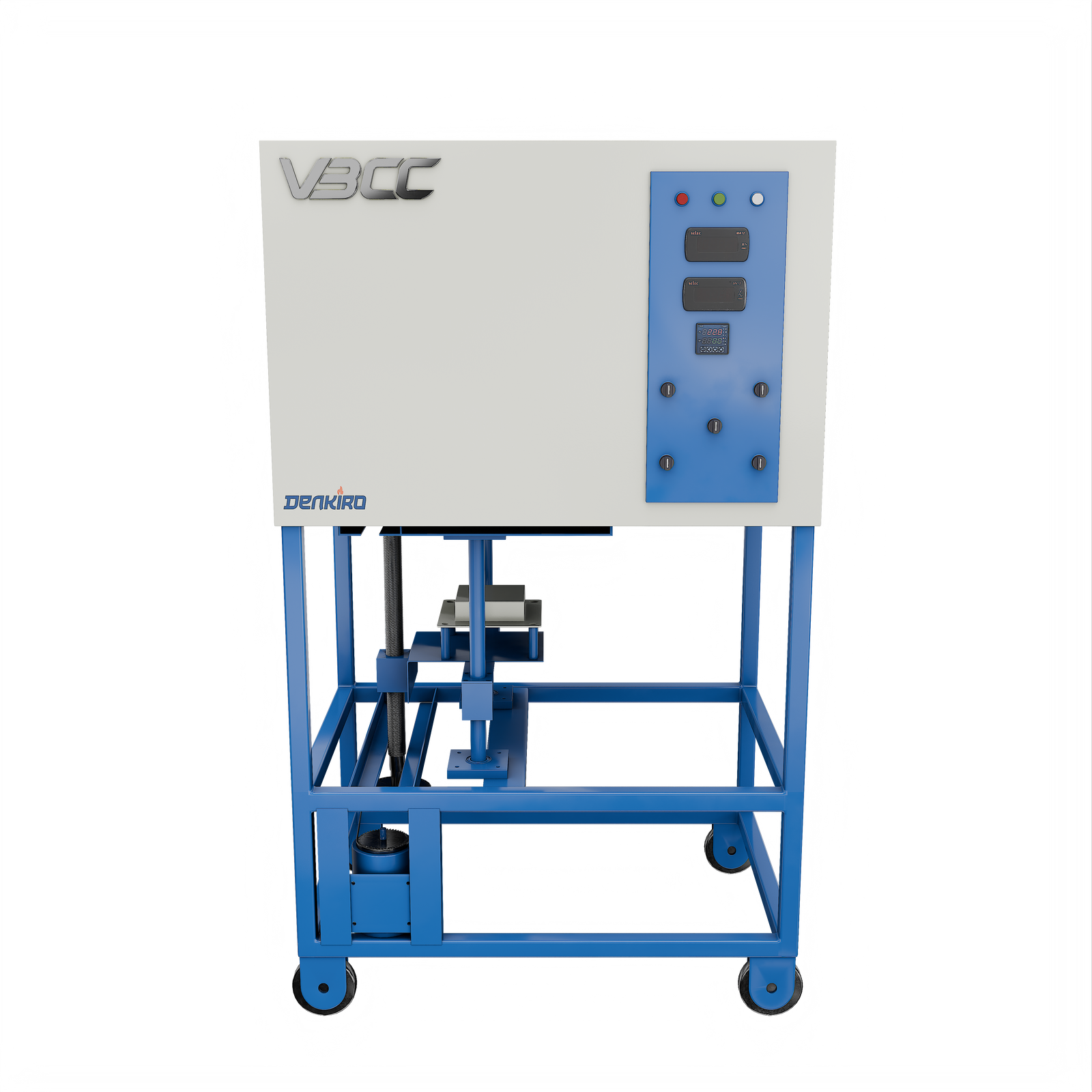

Raising Hearth Furnace
VBCC’s Raising Hearth Furnace is super convenient for sample handling and is effectively used for a variety of applications, including sintering, annealing, advanced material synthesis, firing and sintering advanced ceramics, and high-temperature glass melting.
- Versatile Bottom Loading Design :This raising hearth furnace features a bottom loading design, ideal for ease of use and efficient sample loading and unloading.
- Robust Construction :The furnace is built with a high-quality mild steel body and structure, ensuring durability and longevity, even under high-temperature operations.
- High-Temperature Capability :Capable of reaching a maximum temperature of 1700°C, making it suitable for a wide range of high-temperature applications.
- Efficient Heating System :Features APM Kanthal heating elements, delivering reliable heating performance up to 1200°C for continuous operation. For 1400°C, it uses Silicon Carbide, and for 1600°C or more, it uses Super Kanthal.
- Precision Temperature Control :Features an imported TAIE PID- 18*8=144 Segments microprocessor-based digital temperature controller programmable heating profiles.
- Efficient Insulation :The double-wall structure and advanced insulation materials maintain skin temperatures just above ambient, enhancing safety and energy efficiency.
- Automated Operations :Fully automated raising, lowering, and tilting mechanisms powered by motorized systems for seamless operation.
- Reliable Power Control :Phase angle controlled thyristor drive with current feedback ensures accurate power management and stable furnace operation.
- Separate Control Panel :A dedicated control panel with digital ammeters and multiple indicators for easy monitoring and operation.
- Safety Features :Equipped with comprehensive safety features including input/output fuses and robust mechanical construction to ensure safe and reliable performance.
- Enhanced User Safety :The furnace's design includes sophisticated door mechanisms and high-quality insulation to minimize heat loss and maintain a safe operating environment for users.
- Energy Efficiency :With advanced insulation and efficient heating elements, the furnace ensures optimal energy consumption, reducing operational costs.
- Flexible Temperature Range :The furnace offers a wide working temperature range up to 1600°C, making it suitable for various industrial applications including material testing, heat treatment, and research.
- Superior Thermal Stability :The use of high-grade materials and precise temperature control systems ensures consistent thermal stability and repeatable results in high-temperature processes.
