Box Type Vacuum Furnace

These versatile box-type vacuum furnace provides controlled high-temperature processing in a vacuum environment, essential for applications like brazing, sintering, and heat treatment. Our furnace also ensures the purity of the thermal processing environment.

: High-temperature box-type vacuum furnace, essential for brazing and sintering, providing a controlled and pure thermal processing environment

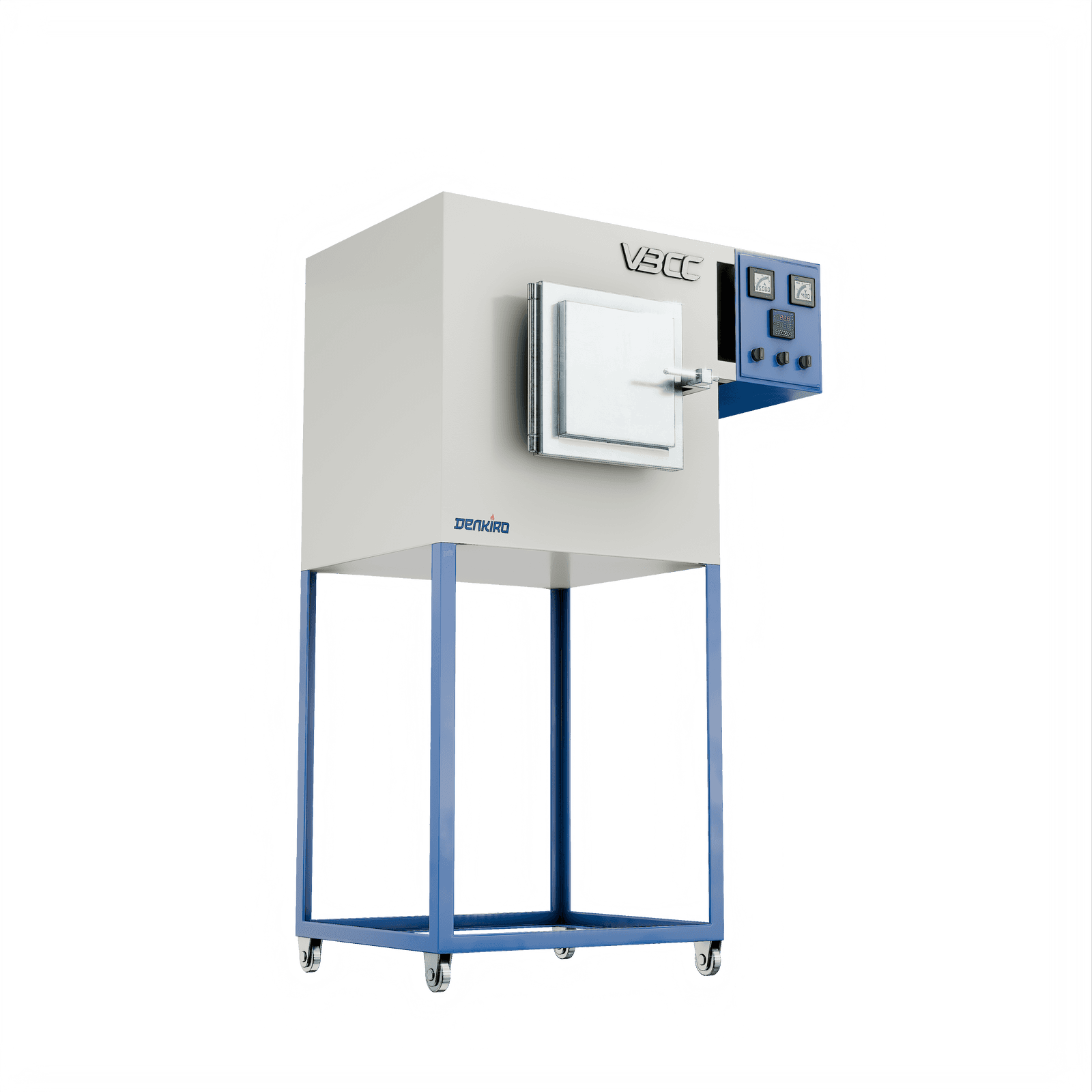

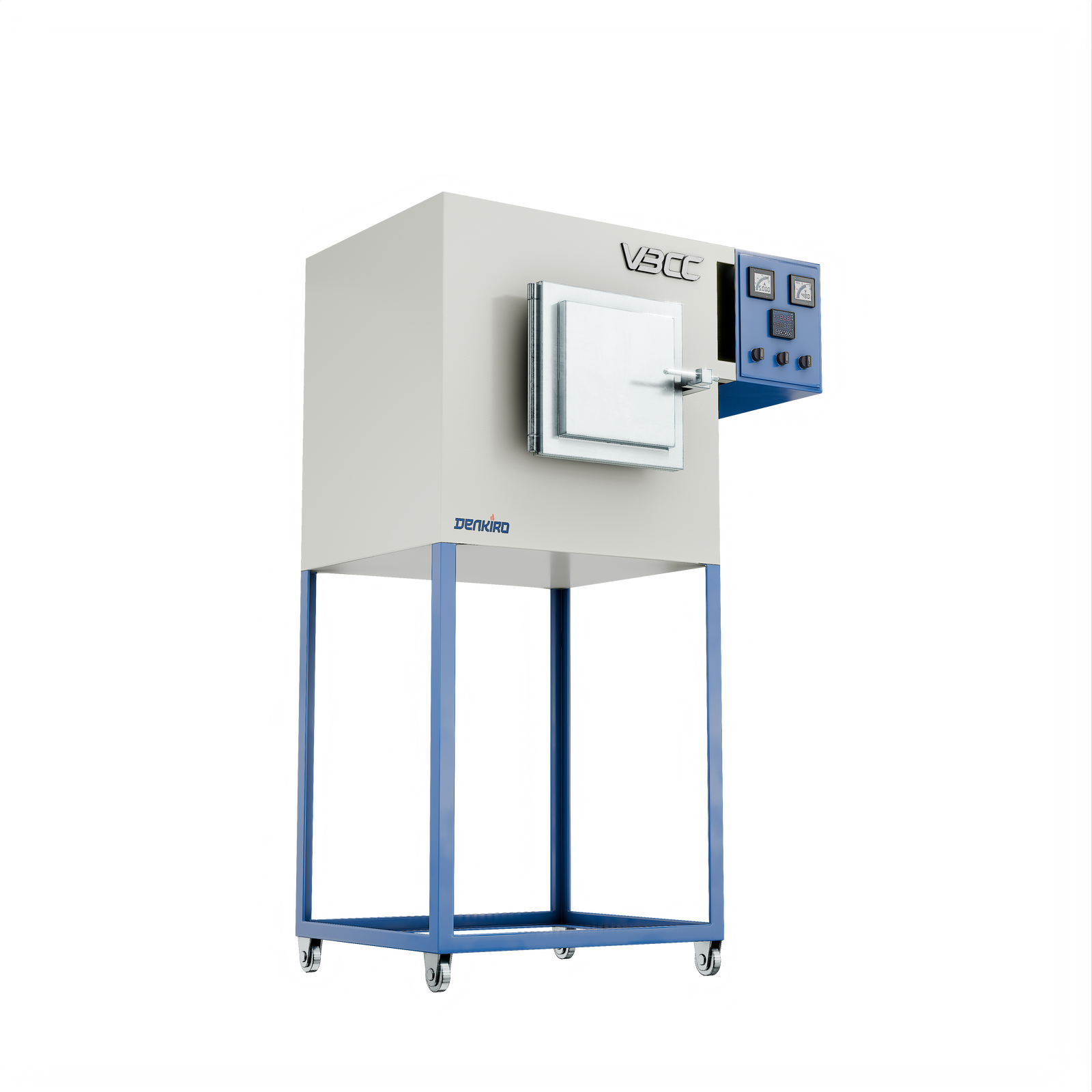

Box type vacuum furnace with double-wall MS body, customizable dimensions, designed for efficient thermal processing tasks

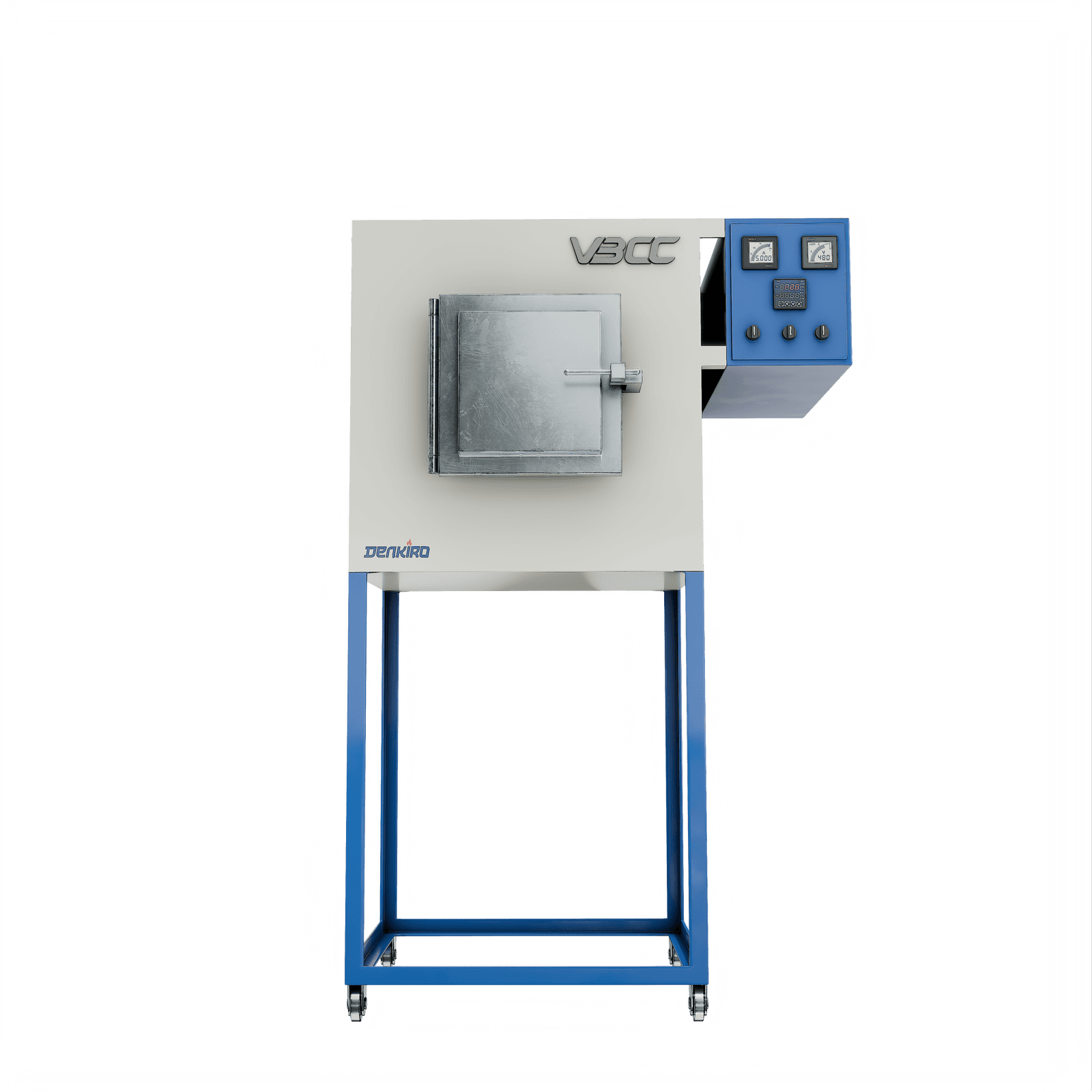

Stainless steel door box vacuum furnace with insulation and chain mechanism, designed for efficient thermal processing and reduced heat loss
  • Robust Shell Construction :Engineered with a double-wall MS body and MS angle structure, the furnace boasts dimensions according to customer requirements, offering ample space for thermal processing tasks.
  • Advanced Door Design :Featuring a stainless steel door with proper insulation and a chain mechanism for smooth operation, the furnace minimizes heat loss, ensuring efficient thermal processing.
  • Integrated Control Panel :The control panel is conveniently integrated into the furnace, providing easy access to temperature and process controls for seamless operation.
  • Efficient Insulation :High alumina bricks and mechanically pressed blend ceramic fiber insulation ensure superior heat retention and uniform thermal distribution throughout the chamber.
  • Vacuum Chamber :Equipped with a vacuum chamber measuring 210 mm (L) x 210 mm (B) x 150 mm (H), constructed with special alloy material to withstand vacuum conditions.
  • Precise Vacuum Control :Achieve vacuum levels as low as 10⁻¹ mbar at room temperature with the included vacuum attachment, ensuring optimal processing conditions for sensitive materials.
  • Controlled Atmosphere Fittings :Stainless steel (SS310) fittings with water cooling arrangement and Whiton 'O' rings enable precise control over the atmosphere within the chamber, ideal for purging multiple gases.
  • Advanced Heating System :Utilizing APM grade Kanthal heating elements, the furnace operates on single-phase power (230V/AC), delivering up to 4 kW of power for temperatures up to 500°C.
  • Temperature Control :Equipped with a TAIE microprocessor-based PID programmer- 18*8=144 Segments and digital temperature controller, coupled with 'K' type thermocouples for precise temperature control with an accuracy of ±1°C.
  • Integrated Safety Features :The furnace includes input and output fuses, ensuring safe and reliable operation during thermal processing.
  • Vacuum Pump :A Thosniwal vacuum pump with a capacity of 120 liters and vacuum levels of 10⁻¹ mbar, monitored via an analog gauge, ensures efficient vacuum operation.

More laboratory Furnaces

Box or Muffle Furnace

Box or Muffle Furnace

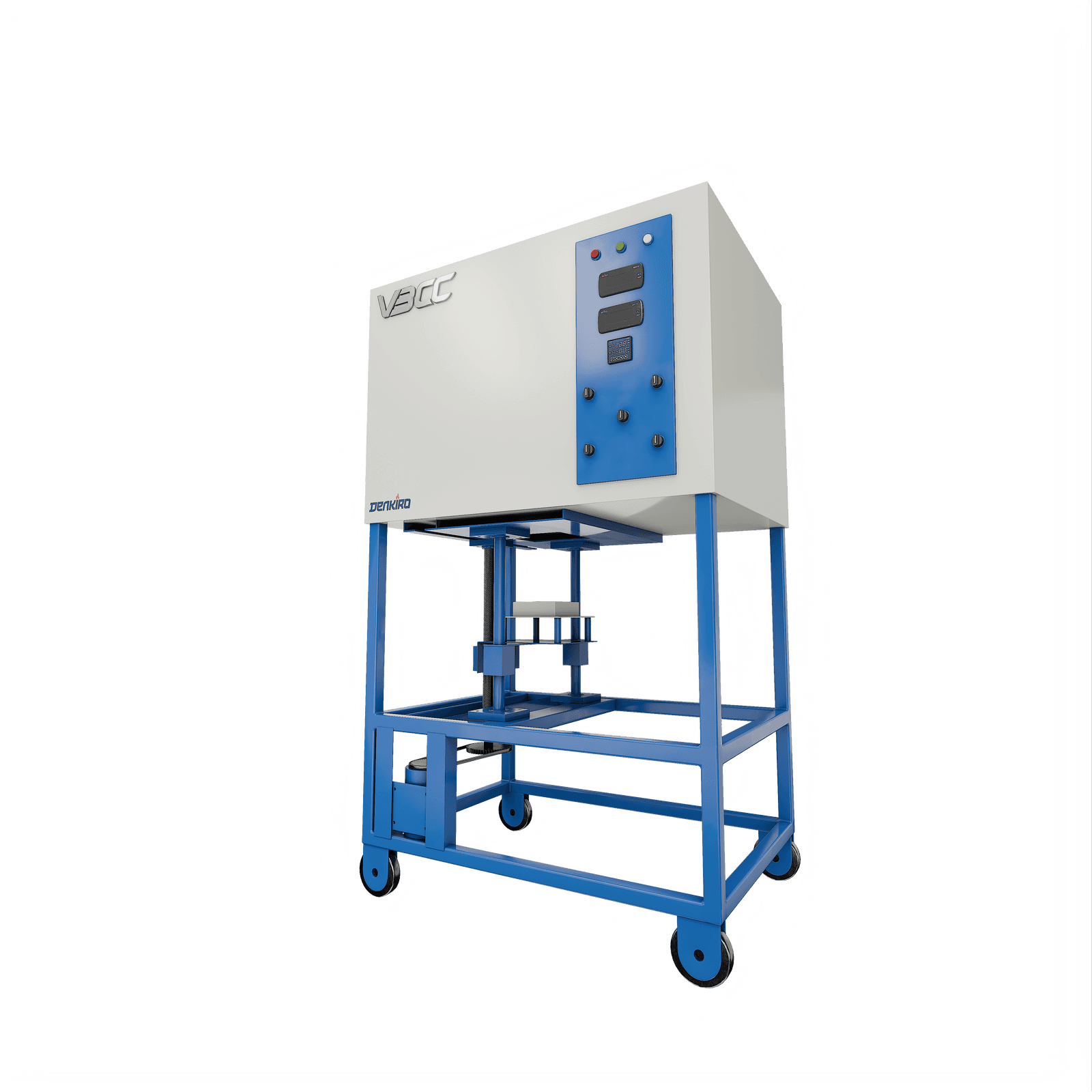

Raising Hearth Furnace
