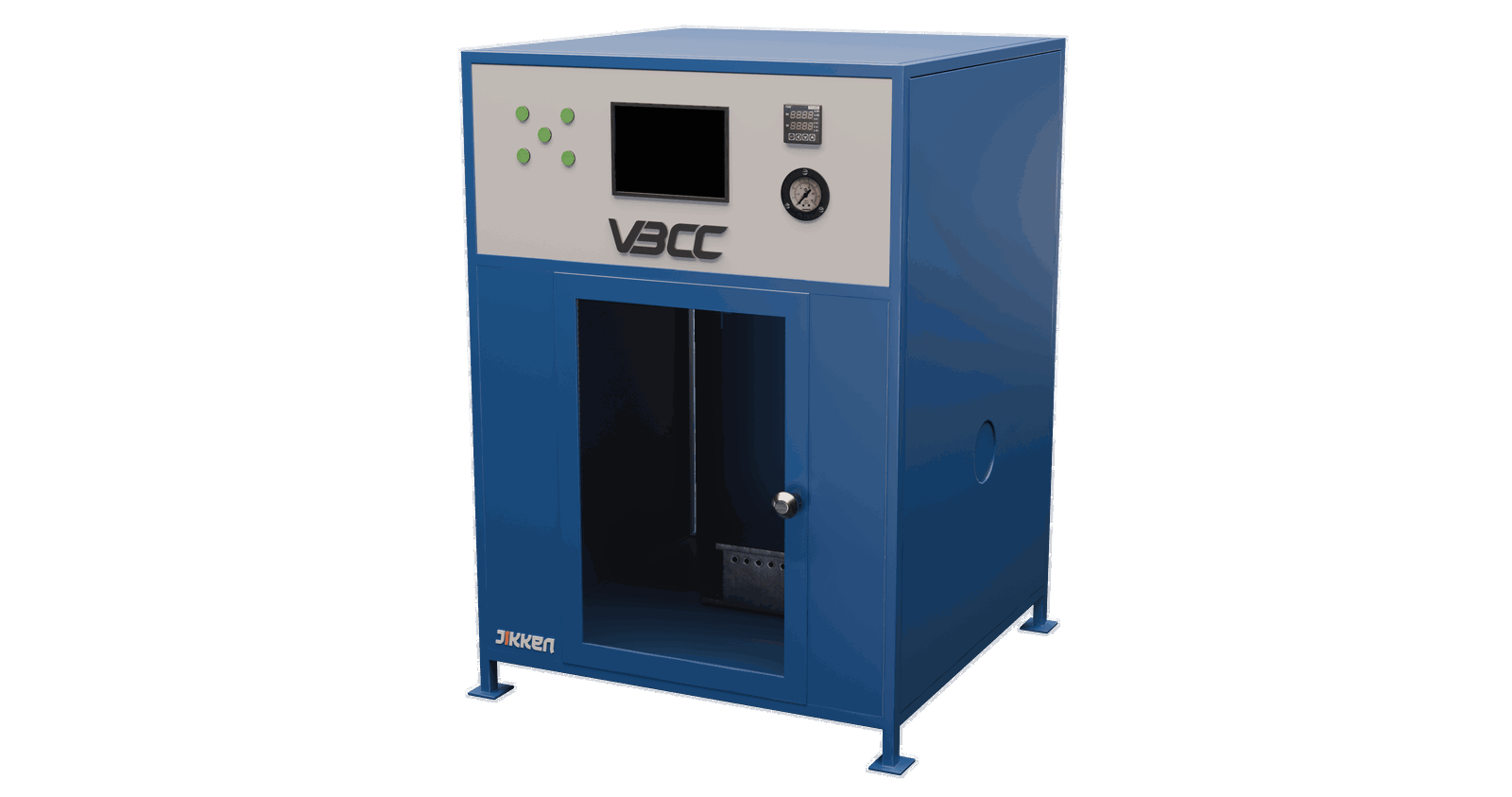

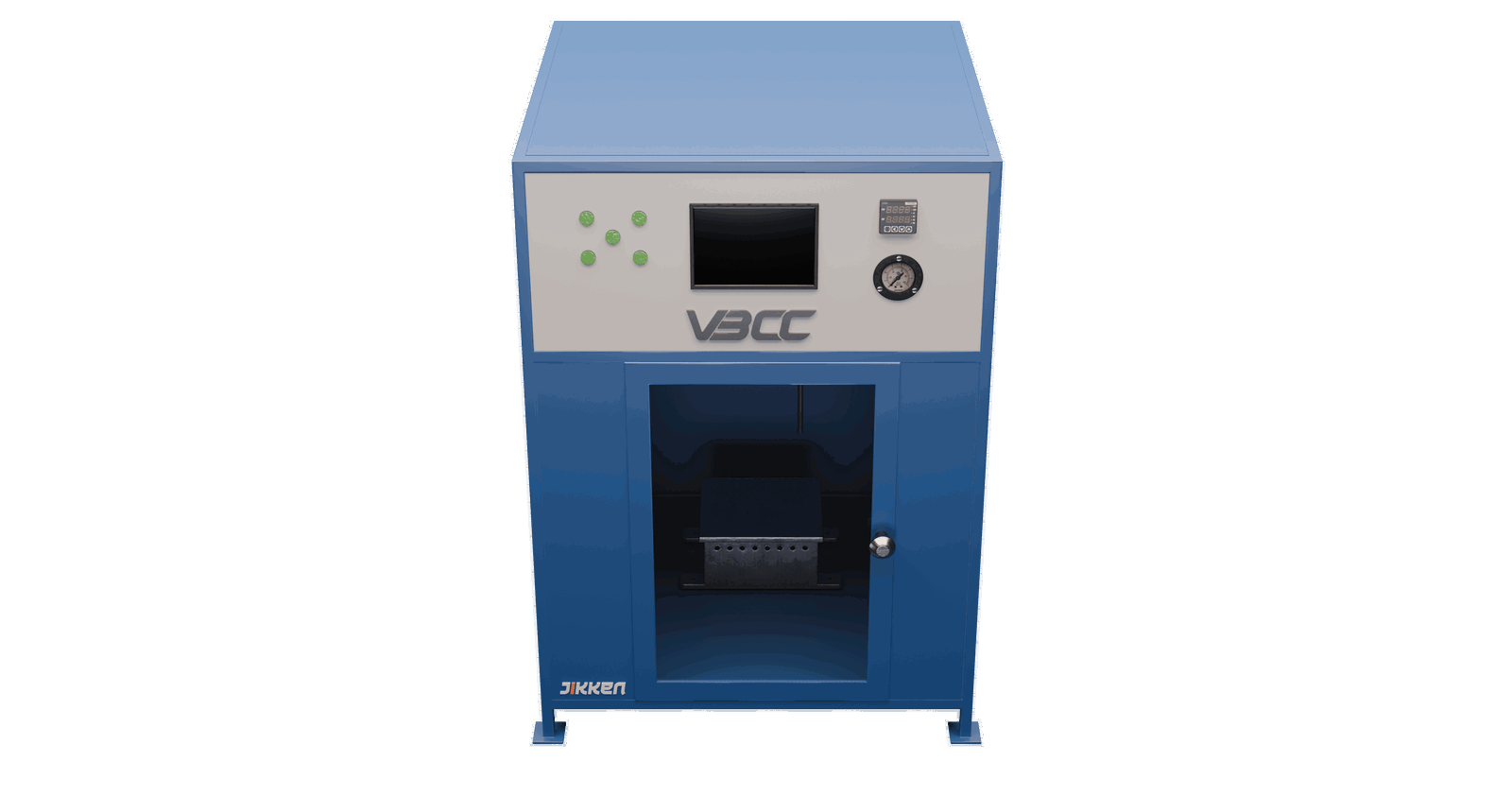

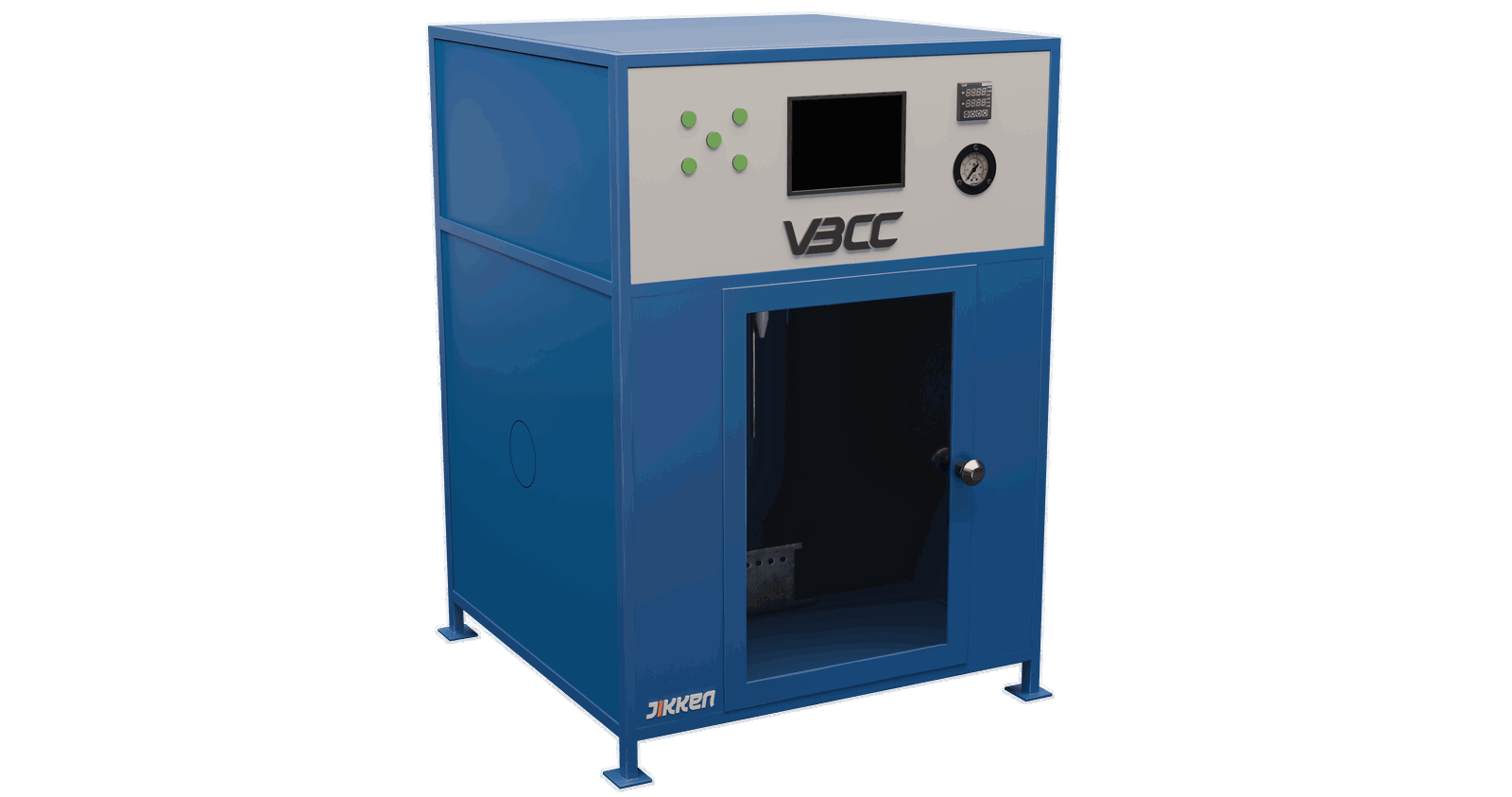

Spray Pyrolysis
Our Spray Pyrolysis equipment is designed to produce thin films, coatings, and nanoparticles by spraying a precursor solution onto a heated substrate for pyrolytic decomposition. Featuring a space-saving double-deck design and an efficient APM-grade Kanthal heating element (max 400°C), it ensures precise control over material composition, thickness, and structure. It is ideal for applications in optoelectronics, energy storage, and materials science research
- Robust Constructior :High-quality M.S. body and angle structure with powder coat finish.
- Double Deck Designer :Optimized space with top for equipment and bottom for a shelf model.
- Advanced Viewing :Acrylic door allows for operation monitoring without compromising insulation.
- Efficient Heating System :APM grade Kanthal heating elements with a maximum working temperature of 400°C.
- Precise Spraying :Peristaltic pump with adjustable spray rates from 1 ml to 65 ml/min.
- Customizable Drive System :Stepper motor controller with three directional movements (manual and automatic).
- Accurate Control System :PID temperature program-mer with K-type thermocouple and non-contact sensors
- Integrated Safety Features :Pressure relief valve, safety valves, and automatic pressure switch included.
- User-Friendly Interfac :PLC-based automation with HMI screen for easy operation.
- Complete Setup :Includes a laptop and software for enhanced functionality.
More lab equipment

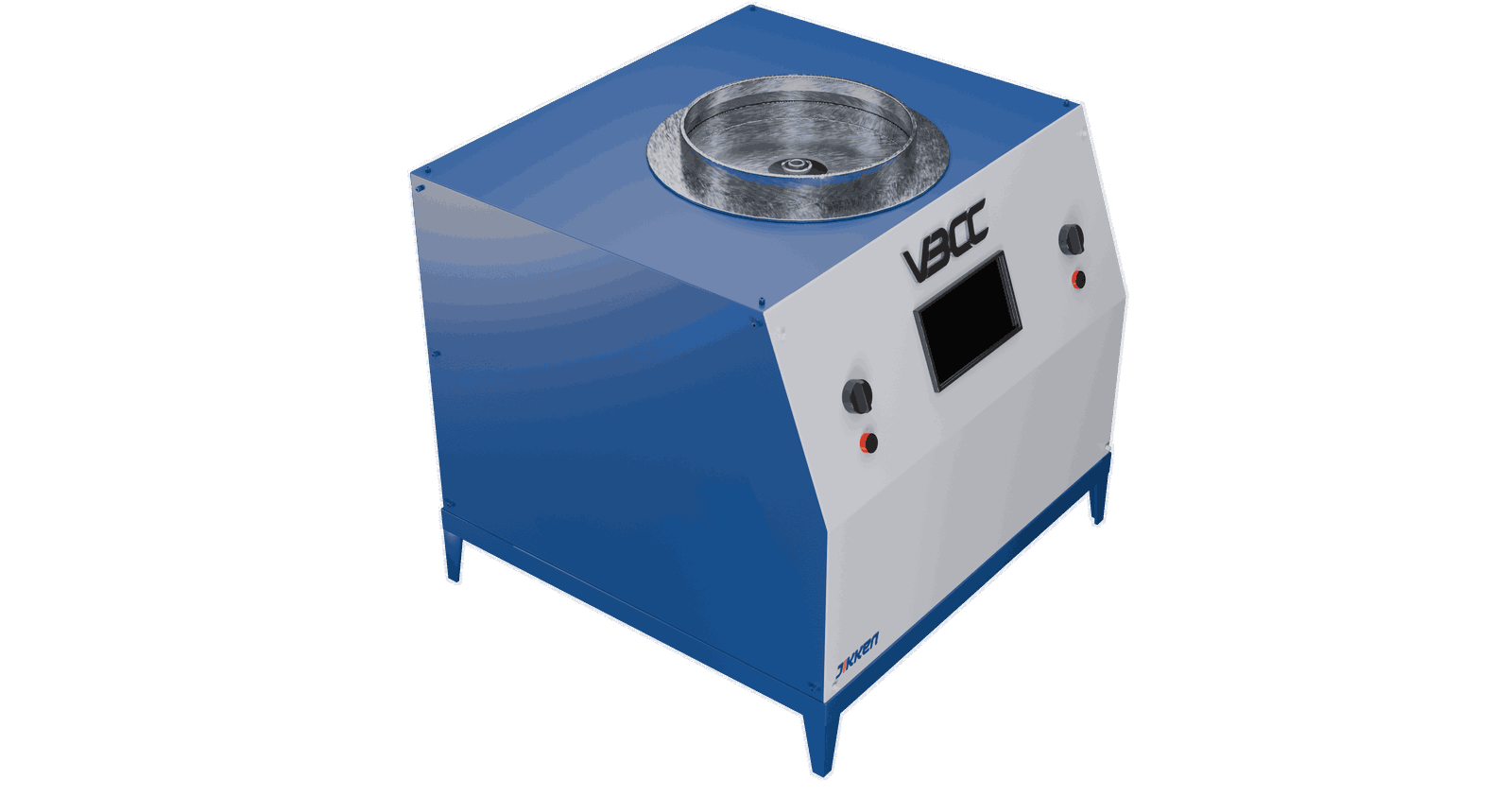

Spin Coating System (SC-Base)
