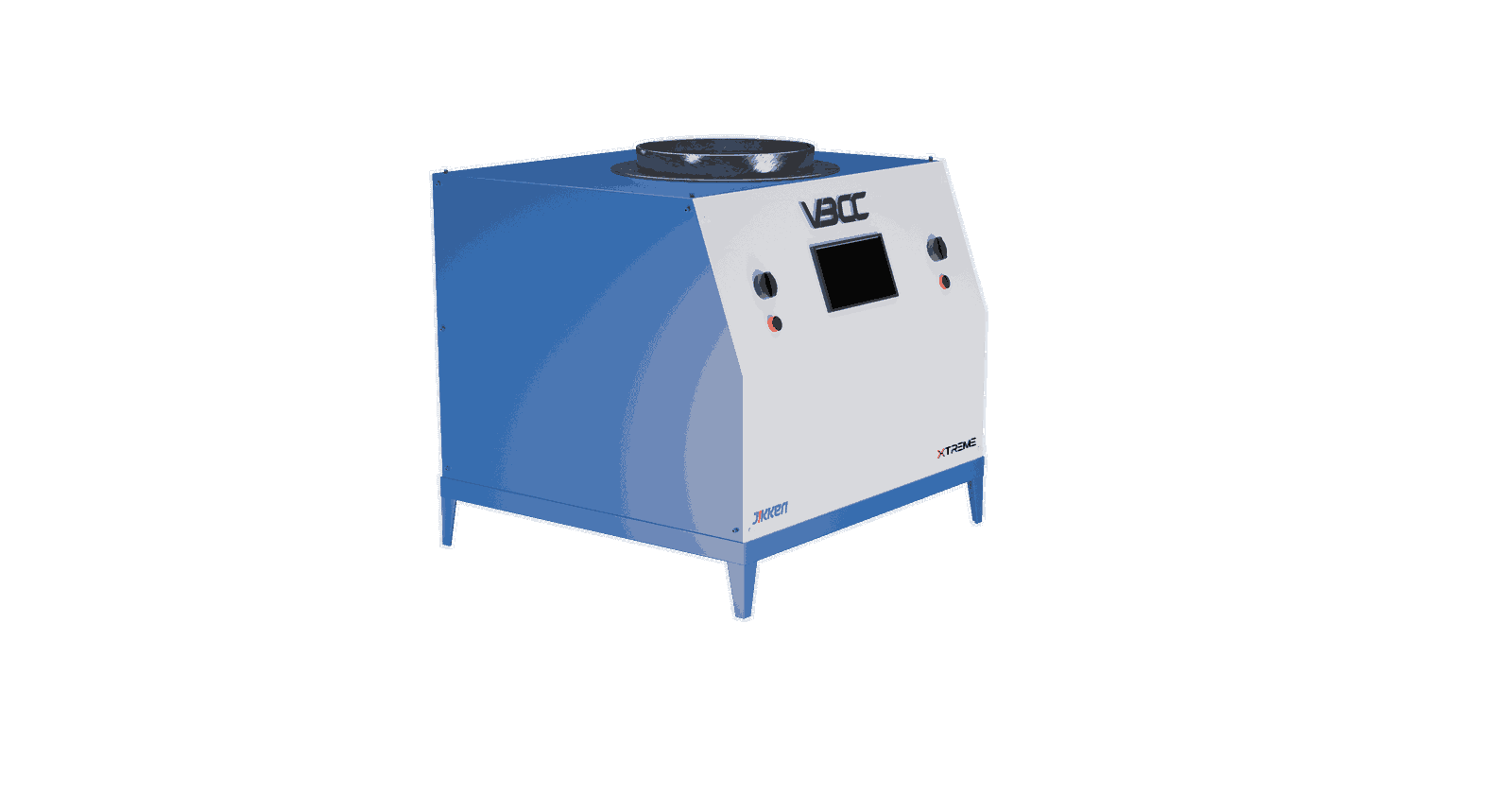

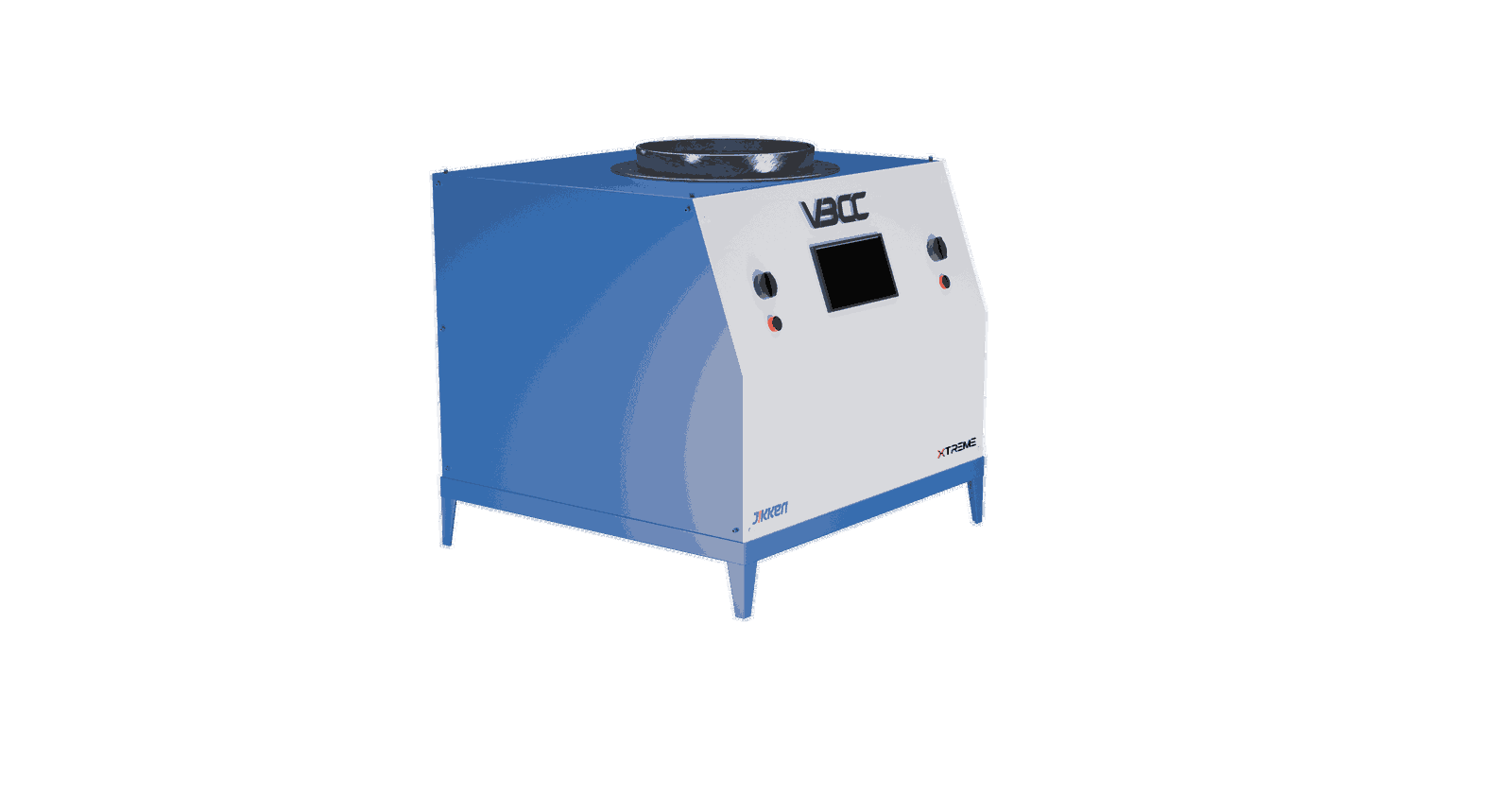

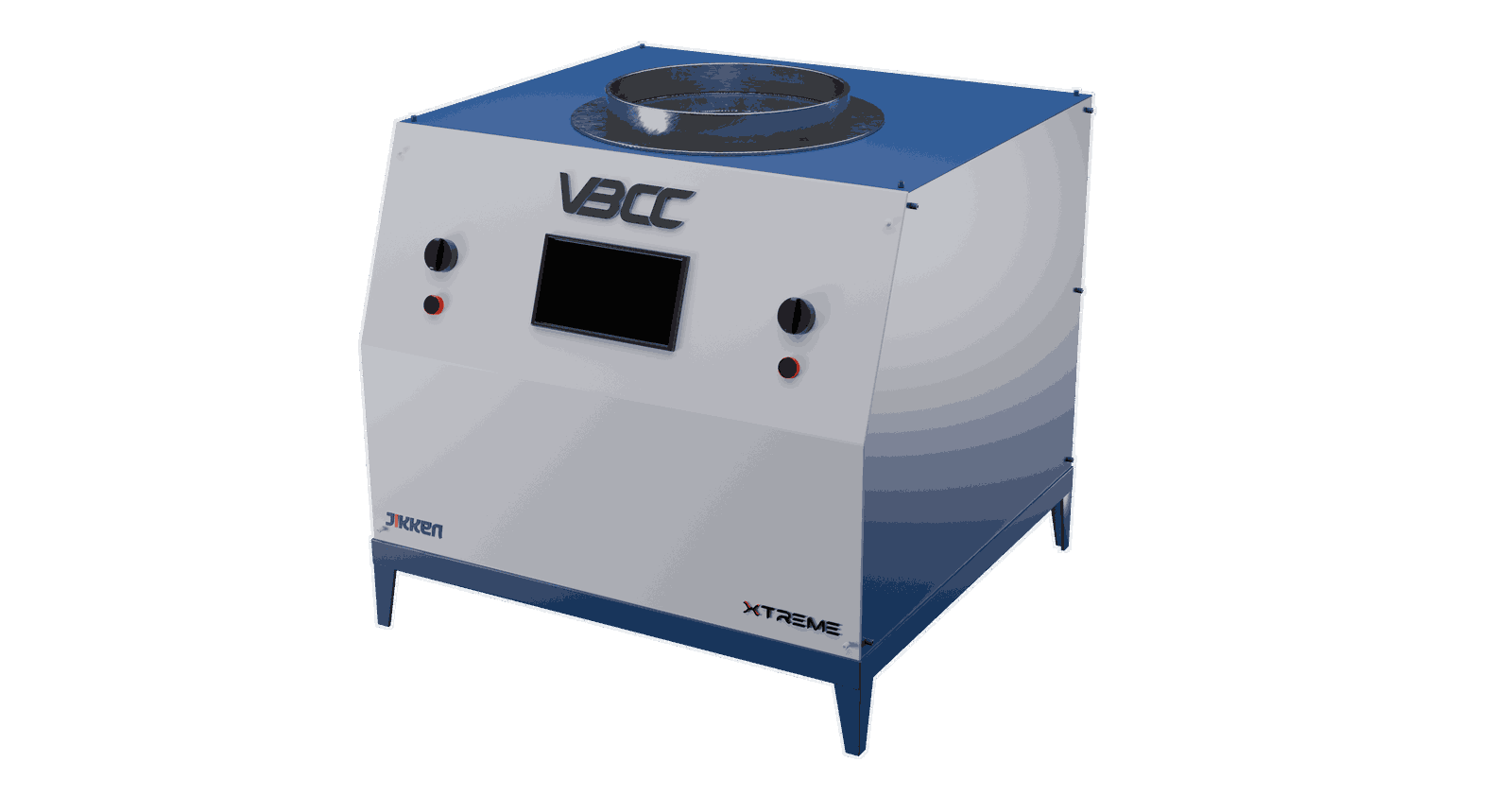

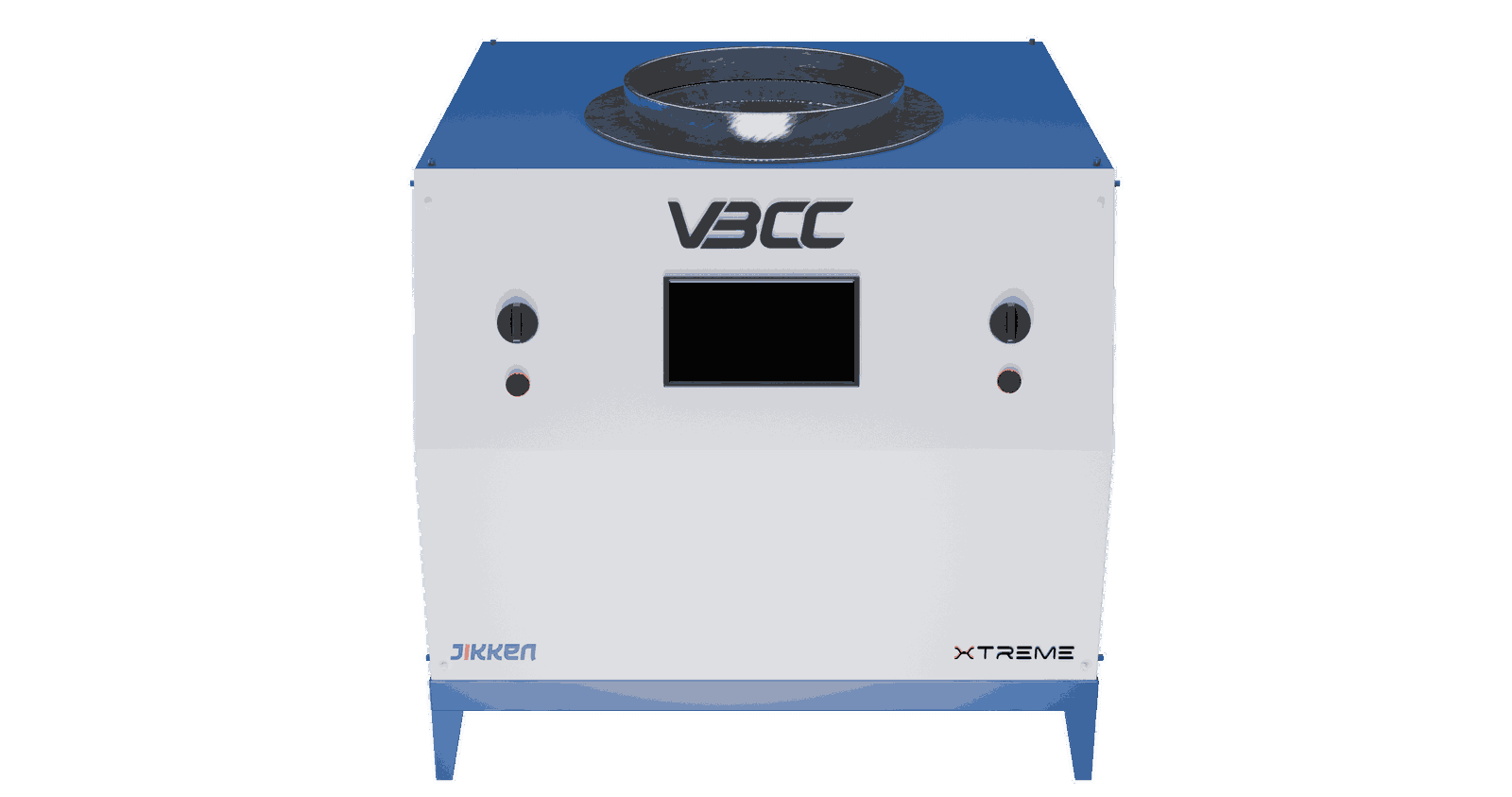

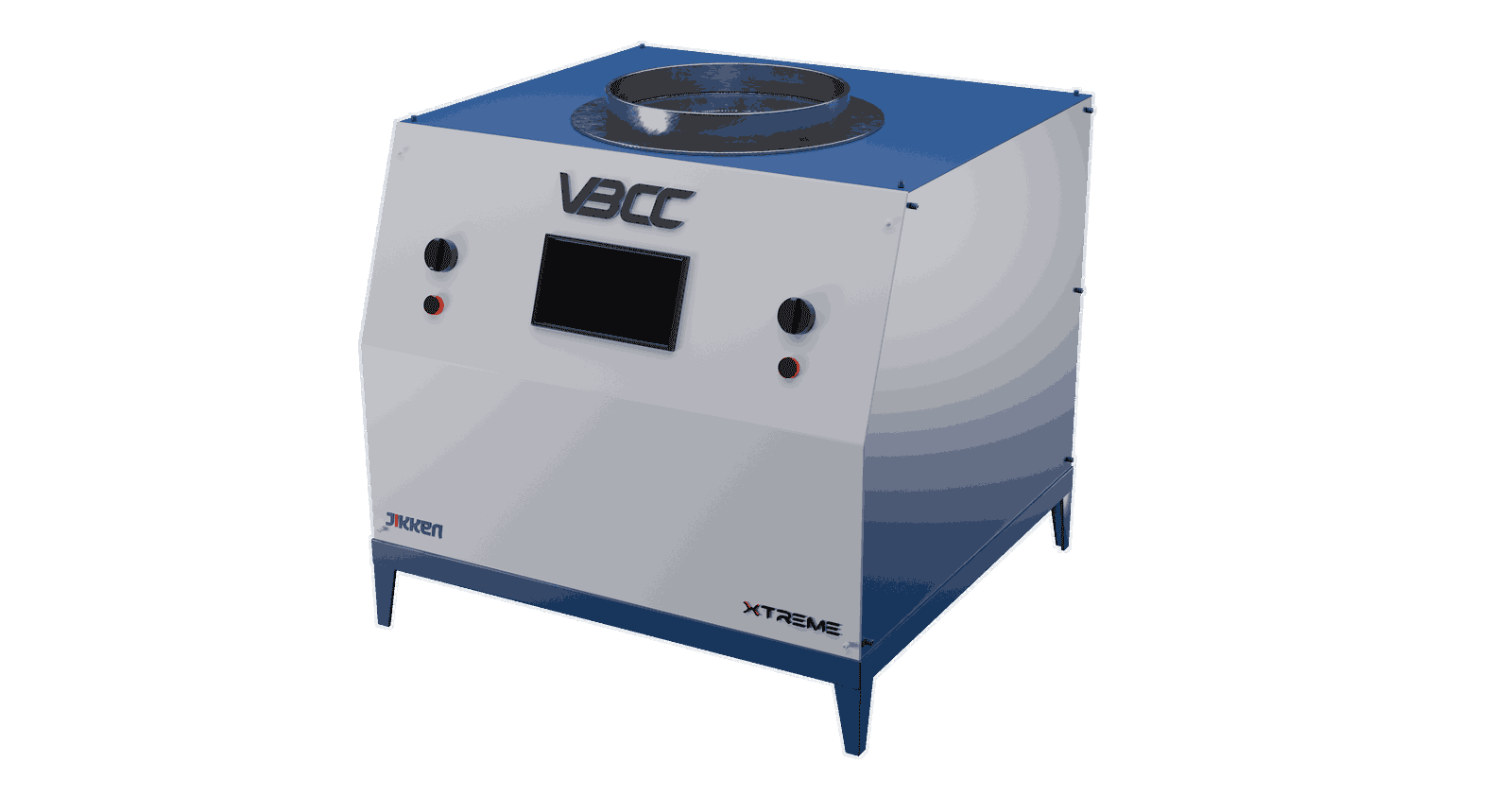

Spin Coating System (SC-Xtreme)
With precisely controlled spin coating process parameters, our premium spin coating system delivers unmatched performance, featuring adjustable speeds ranging from 100 to 10,000 RPM. Engineered for efficiency, it streamlines the spin coating of functional oxide layers on glass or single-crystal substrates using sol-gel precursors, enabling the production of uniform thin films with nanoscale precision—ideal for high-value applications in advanced materials and nanotechnology industries.
- Superior Construction :Robust M.S. body and angle structure, finished with durable powder coating.
- Extended Speed Range :Adjustable speeds from 100 to 10,000 RPM, accommodating diverse application needs.
- Precision Performance :Speed accuracy within ±1% across the full range ensures consistent results.
- Advanced User Interface :LCD console with programmable settings for RPM, acceleration, deceleration, and dwell time.
- Intuitive Control Options :Touch screen HMI for easy navigation and operation.
- Teflon Coated Working Chamber :Facilitates easy cleaning and prevents contamination during processes.
- Versatile Bowl Size :200 mm (8 inch) diameter bowl designed for various substrates.
- Durable Sample Holder :Circular holder with a 25 mm diameter made from corrosion-resistant materials.
- Efficient Drive System :Operated via a variable frequency drive for smooth and efficient performance.
- Reliable Vacuum System :Rotary vacuum pump achieving a vacuum level of 760 mm mercury for optimal conditions.
